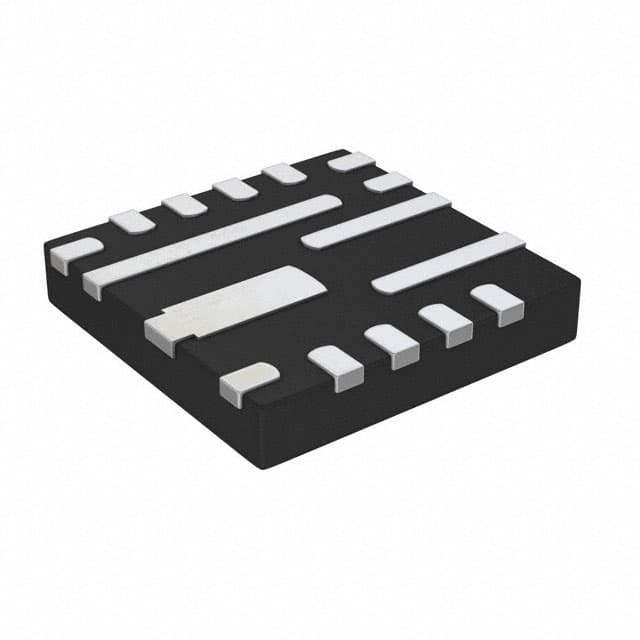

RICHTEK RT2810BHGQUF

Manufacturer No:

RT2810BHGQUF

Manufacturer:

RICHTEK

Package:

16-UFQFN

Description:

16 Terminals 4.5V 16-Pin DC DC Voltage Regulator SWITCHING REGULATOR 1 Outputs 300kHz~700kHz Cut Tape (CT) 10A 16-UFQFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

RT2810BHGQUF information

RICHTEK RT2810BHGQUF technical specifications, attributes, parameters and parts with similar specifications to RICHTEK RT2810BHGQUF.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
16-UFQFN

Number of Pins
16

Operating Temperature
-40°C~125°C TJ

Packaging
Cut Tape (CT)

Series
ACOT?

Published
2016

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
16

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Function
Step-Down

Number of Outputs
1

Voltage - Input (Max)
18V

Output Type
Adjustable

Voltage - Input (Min)
4.5V

Input Voltage-Nom
12V

Analog IC - Other Type
SWITCHING REGULATOR

Current - Output
10A

Max Output Voltage
8V

Voltage - Output (Min/Fixed)
0.7V

Topology
Buck

Frequency - Switching
300kHz~700kHz

Control Technique
PULSE WIDTH MODULATION

Synchronous Rectifier
Yes

Min Output Voltage
700mV

Length
3mm

Height Seated (Max)
0.6mm

Width
3mm

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for RICHTEK RT2810BHGQUF.

Datasheets:

richtekusainc-rt2810bhgquf-datasheets-7096.pdf

richtek-rt2810bhgquf-datasheets-0455.pdf

Environmental Information:

richtekusainc-rt8471gj5-environmentalinformation-2260.pdf

RT2810BHGQUF Overview

For optimal performance, this voltage regulator uses the Cut Tape (CT) package. In this voltage regulator, there are 16 terminations. As a matter of fact, the type of analog IC that this voltage regulator 12v is equipped with is called SWITCHING REGULATOR. Space savings are achieved by placing this voltage regulator in the 16-UFQFN package. There are 1 outputs on DC DC switching regulator. Adjusting voltage regulator's output pins generate Adjustable output. There is a switching regulator that is compatible with the Surface Mount mounting. As long as its operating temperature is -40°C~125°C TJ, dc to dc voltage regulator should perform well. There is a switching frequency of 300kHz~700kHz for this voltage regulator 12v. Input voltage 4.5V is the dc to dc voltage regulator's minimum input voltage required for operation of the voltage regulators. The output voltage (Min/Fixed) of this voltage regulator 12v is 0.7V. This voltage regulator 12v offers maximum design flexibility with an output current of 10A. The maximum input voltage of this voltage regulator 12v is 18V. As a result of the NOT SPECIFIED peak reflow temperature, this regulator is essentially indestructible. As a result of DC DC switching regulator's design, it is designed to provide an input voltage of 12V for the purposes of operation. The switching regulator operation is carried out by 16 pins. In order for this switching regulator to work properly, the output voltage should be at least 700mVV. There is a maximum output voltage of 8V from this voltage regulator 12v. The switching DC-DC regulator belongs to the ACOT? family of electronic voltage regulator 12vs.

RT2810BHGQUF Features

1 outputs
Peak reflow temperature (Cel) of NOT SPECIFIED
16 pins

RT2810BHGQUF Applications

There are a lot of Richtek USA Inc.
RT2810BHGQUF Voltage Regulators applications.

Automation technology
CMM
Various precision measuring instruments
Various precision measuring detectors
Flaw detection equipment
Balance equipment
Industrial robots
Industrial controllers
Die casting equipment
Injection molding machinery
