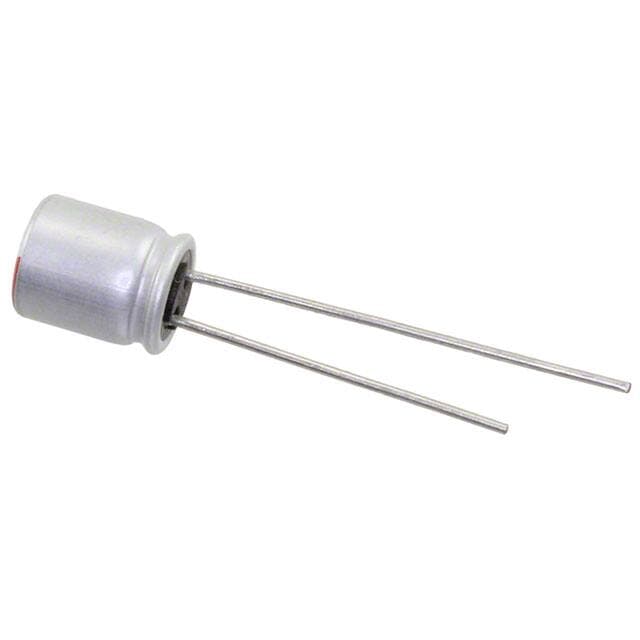

NICHICON RS81C271MDN1
NICHICON RS81C271MDN1

NICHICON RS81C271MDN1

Manufacturer No:

RS81C271MDN1

Manufacturer:

NICHICON

Package:

Radial, Can

Description:

270?F ±20% Radial, Can 0.354 9.00mm Bulk 15mOhm FPCAP, RS8 Through Hole Polymer General Purpose

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

RS81C271MDN1 information

NICHICON RS81C271MDN1 technical specifications, attributes, parameters and parts with similar specifications to NICHICON RS81C271MDN1.

  • Type
  • Parameter
  • Factory Lead Time
  • 18 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can
  • Operating Temperature
  • -55°C~105°C
  • Packaging
  • Bulk
  • Series
  • FPCAP, RS8
  • Published
  • 2015
  • Size / Dimension
  • 0.248Dia 6.30mm
  • Tolerance
  • ±20%
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Radial
  • Type
  • Polymer
  • Applications
  • General Purpose
  • Capacitance
  • 270?F
  • Voltage - Rated DC
  • 16V
  • Lead Pitch
  • 2.4892mm
  • ESR (Equivalent Series Resistance)
  • 15mOhm
  • Polarity
  • Polar
  • Lead Spacing
  • 0.098 2.50mm
  • Lifetime @ Temp
  • 2000 Hrs @ 105°C
  • Leakage Current
  • 1.296mA
  • Life (Hours)
  • 2000 hours
  • Ripple Current @ Low Frequency
  • 380mA @ 120Hz
  • Ripple Current @ High Frequency
  • 3.8A @ 100kHz
  • Dissipation Factor
  • 0.1 %
  • Height Seated (Max)
  • 0.354 9.00mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for NICHICON RS81C271MDN1.

RS81C271MDN1 Overview


In order to power systems, 3.8A @ 100kHz ripple current @ High Frequency is needed.This electrical device has an ESR (Equivalent Series Resistance) of 15mOhm.For 380mA @ 120Hz to be able to fully perform its function, a ripple current @ Low Frequency needs to be provided.It is important to note that the part has a dissipation factor of 0.1 %.For stable operation, the operating temperature should be -55°C~105°C.

RS81C271MDN1 Features


3.8A @ 100kHz ripple current on a high frequency
a 15mOhm in ESR (Equivalent Series Resistance) in this electrical device
an operating temperature of -55°C~105°C


RS81C271MDN1 Applications


There are a lot of Nichicon
RS81C271MDN1 applications of aluminum polymer capacitors.


  • LED driver power supplies
  • Phone chargers
  • Motherboards
  • Servers and adapters (laptop power supplies)
  • Medical equipment
  • Switching Power Supply and DC/DC Converter.
  • Buck up Power Supplies of CPU(VRM etc.)
  • Miniature high Power Supply.
