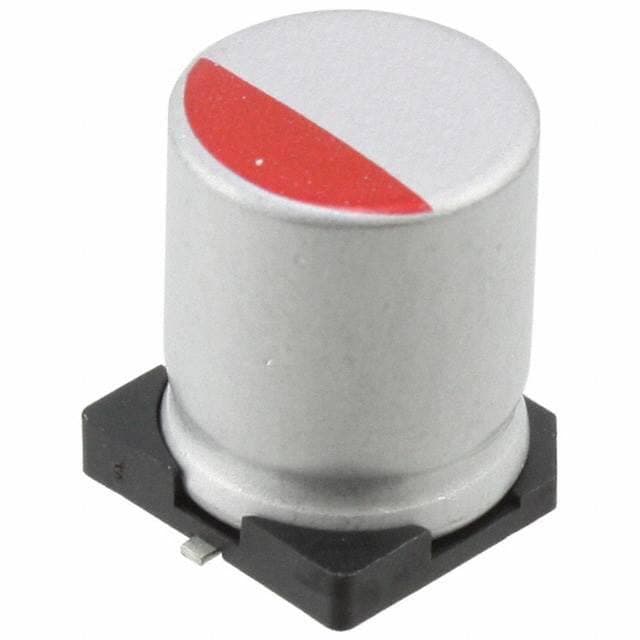

NICHICON RPS1A561MCN1GS

Manufacturer No:

RPS1A561MCN1GS

Manufacturer:

NICHICON

Package:

Radial, Can - SMD

Description:

560?F ±20% Radial, Can - SMD 0.488 12.40mm Tape & Reel (TR) 13mOhm FPCAP, RPS Surface Mount Polymer General Purpose

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

RPS1A561MCN1GS information

NICHICON RPS1A561MCN1GS technical specifications, attributes, parameters and parts with similar specifications to NICHICON RPS1A561MCN1GS.

Type
Parameter

Factory Lead Time
18 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
Radial, Can - SMD

Surface Mount Land Size
0.406Lx0.406W 10.30mmx10.30mm

Operating Temperature
-55°C~105°C

Packaging
Tape & Reel (TR)

Series
FPCAP, RPS

Published
2009

Size / Dimension
0.394Dia 10.00mm

Tolerance
±20%

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
SMD/SMT

Type
Polymer

Max Operating Temperature
105°C

Min Operating Temperature
-55°C

Applications
General Purpose

Voltage - Rated
10V

Capacitance
560?F

Voltage - Rated DC
10V

Lead Pitch
1.1mm

ESR (Equivalent Series Resistance)
13mOhm

Voltage
10V

Leakage Current
840?A

Ripple Current
5.3A

Ripple Current @ Low Frequency
530mA @ 120Hz

Ripple Current @ High Frequency
5.3A @ 100kHz

Dissipation Factor
0.15 %

Diameter
10mm

Height
12.4mm

Height Seated (Max)
0.488 12.40mm

Length
12.4mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NICHICON RPS1A561MCN1GS.

Datasheets:

nichicon-pcj1a391mcl1gs-datasheets-5842.pdf

RPS1A561MCN1GS Overview

Systems need 5.3A @ 100kHz ripple current at high frequencies in order to function.A value of 13mOhm is assigned to the electrical device's ESR (Equivalent Series Resistance).Providing a ripple current at low frequency is necessary for 530mA @ 120Hz to function properly.Dissipation factor of 0.15 % is important to note for the part.A stable operation requires an operating temperature of -55°C~105°C.

RPS1A561MCN1GS Features

5.3A @ 100kHz ripple current on a high frequency
a 13mOhm in ESR (Equivalent Series Resistance) in this electrical device
an operating temperature of -55°C~105°C

RPS1A561MCN1GS Applications

There are a lot of Nichicon
RPS1A561MCN1GS applications of aluminum polymer capacitors.

LED driver power supplies
Phone chargers
Motherboards
Servers and adapters (laptop power supplies)
Medical equipment
Switching Power Supply and DC/DC Converter.
Buck up Power Supplies of CPU(VRM etc.)
Miniature high Power Supply.
