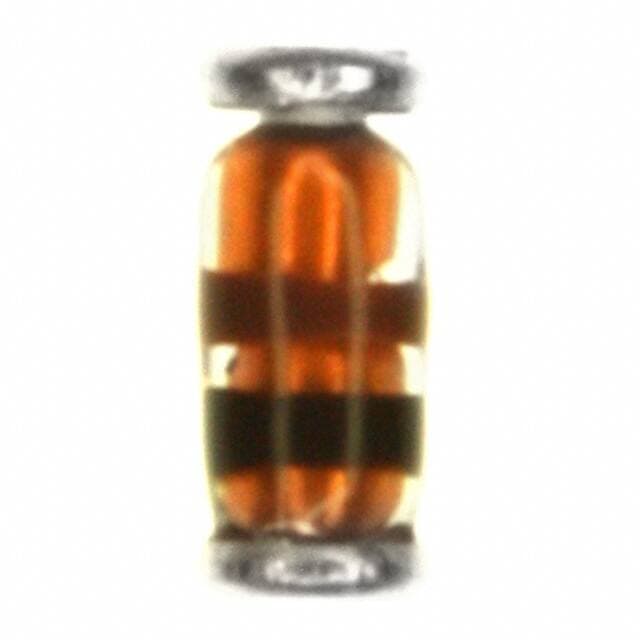

ROHM RLZTE-114.7B

Manufacturer No:

RLZTE-114.7B

Manufacturer:

ROHM

Package:

O-LELF-R2

Description:

Zener Diode, 4.7V V(Z), 2.7%, 0.4W, Silicon, Unidirectional

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

RLZTE-114.7B information

ROHM RLZTE-114.7B technical specifications, attributes, parameters and parts with similar specifications to ROHM RLZTE-114.7B.

Type
Parameter

Pbfree Code
Yes

RoHS Status
RoHS Compliant

Part Life Cycle Code
Obsolete

Ihs Manufacturer
ROHM CO LTD

Package Description
O-LELF-R2

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8541.10.00.50

Additional Feature
HIGH RELIABILITY

Case Connection
ISOLATED

Configuration
SINGLE

Diode Element Material
SILICON

Diode Type
ZENER DIODE

Dynamic Impedance-Max
25 Ω

JESD-30 Code
O-LELF-R2

Knee Impedance-Max
900 Ω

Number of Elements
1

Number of Terminals
2

Operating Temperature-Max
175 °C

Package Body Material
GLASS

Package Shape
ROUND

Package Style
LONG FORM

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Polarity
UNIDIRECTIONAL

Qualification Status
Not Qualified

Reference Voltage-Nom
4.7 V

Reverse Current-Max
5 µA

Surface Mount
YES

Technology
ZENER

Terminal Form
WRAP AROUND

Terminal Position
END

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Voltage Tol-Max
2.7%

Working Test Current
20 mA

Download datasheets and manufacturer documentation for ROHM RLZTE-114.7B.

Datasheets:

rohmsemiconductor-rlzte1143b-datasheets-0711.pdf

rohm-rlzte1147b-datasheets-2626.pdf

rohm-rlzte1147b-datasheets-2627.pdf

PCN Obsolescence/ EOL:

rohmsemiconductor-mtzjt7712c-pcnobsolescenceeol-3619.pdf

Product Description:

The RLZTE-114.7B is a high-reliability, surface-mount, unidirectional Zener diode from ROHM Semiconductor. This diode is designed to provide a stable reference voltage of 4.7V, making it suitable for various applications in electronics. The diode features a high-reliability design, ensuring consistent performance and long-term reliability.

Features:

High-reliability design for consistent performance and long-term reliability
Surface-mount package for easy integration into modern electronic circuits
Unidirectional operation, ensuring safe and efficient operation
Stable reference voltage of 4.7V, suitable for various applications
High power dissipation of 500mW, allowing for efficient operation in high-power circuits
Low reverse leakage current of 5μA, reducing power consumption and increasing efficiency

Applications:

Primary applications:
Power supplies and voltage regulators
Audio and video equipment
Telecommunications and networking equipment
Secondary applications:
Medical devices and equipment
Industrial control systems
Automotive electronics

Alternative Parts:

RLZTE-10.0B: A similar Zener diode with a reference voltage of 10.0V
RLZTE-6.8B: A similar Zener diode with a reference voltage of 6.8V

Embedded Modules:

Various power supply and voltage regulator modules
Audio and video equipment modules
Telecommunications and networking equipment modules

FAQs:

Q: What is the reference voltage of the RLZTE-114.7B? A: The reference voltage of the RLZTE-114.7B is 4.7V.

Q: What is the power dissipation of the RLZTE-114.7B? A: The power dissipation of the RLZTE-114.7B is 500mW.

Q: Is the RLZTE-114.7B suitable for high-reliability applications? A: Yes, the RLZTE-114.7B is designed for high-reliability applications, ensuring consistent performance and long-term reliability.

Q: What is the terminal finish of the RLZTE-114.7B? A: The terminal finish of the RLZTE-114.7B is TIN/TIN COPPER.

Q: Is the RLZTE-114.7B RoHS compliant? A: Yes, the RLZTE-114.7B is RoHS3 compliant.
