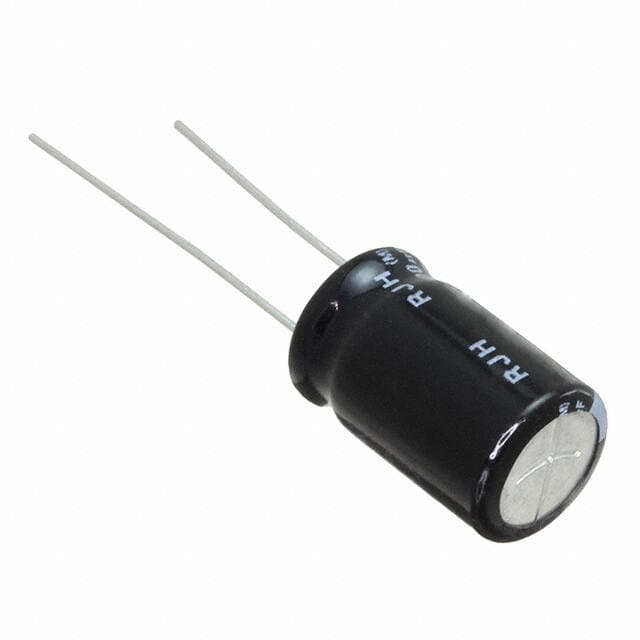

Elna America RJH-50V101MH4#

Manufacturer No:

RJH-50V101MH4#

Manufacturer:

Elna America

Package:

Radial, Can

Description:

RJH 100?F Capacitor ±20% Bulk Through Hole 553mA 0.394Dia 10.00mm -55°C~105°C Polar 5mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

RJH-50V101MH4# information

Elna America RJH-50V101MH4# technical specifications, attributes, parameters and parts with similar specifications to Elna America RJH-50V101MH4#.

Type
Parameter

Factory Lead Time
18 Weeks

Mounting Type
Through Hole

Package / Case
Radial, Can

Surface Mount
NO

Terminal Shape
WIRE

Dielectric Material
ALUMINUM (WET)

Operating Temperature
-55°C~105°C

Packaging
Bulk

Series
RJH

Size / Dimension
0.394Dia 10.00mm

Tolerance
±20%

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Number of Terminations
2

ECCN Code
EAR99

Applications
General Purpose

Voltage - Rated
50V

Capacitance
100?F

Lead Pitch
5mm

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

ESR (Equivalent Series Resistance)
1.66Ohm @ 120Hz

Lead Spacing
0.197 5.00mm

Rated (DC) Voltage (URdc)
50V

Lead Diameter
600 ?m

Leakage Current
0.052mA

Ripple Current
553mA

Polarization
Polar

Life (Hours)
3000 hours

Tan Delta
0.1

Ripple Current @ Low Frequency
387.1mA @ 120Hz

Ripple Current @ High Frequency
553mA @ 100kHz

Height Seated (Max)
0.709 18.00mm

Length
16mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Elna America RJH-50V101MH4#.

RJH-50V101MH4# Overview

Full charge results in a ripple current of 553mA @ 100kHz.1.66Ohm @ 120Hz must have the ESR (Equivalent Series Resistance) to function properly.The ripple current at the lowest charge is 387.1mA @ 120Hz.Keeping the maximum height of the seated person (Max) below 0.709 18.00mm is recommended.Set the rated (DC) voltage of the device (URdc) to 50V.High efficiency requires an operating temperature of -55°C~105°C.

RJH-50V101MH4# Features

the ripple current is 553mA @ 100kHz.
the ripple current is 387.1mA @ 120Hz.
an operating temperature of -55°C~105°C

RJH-50V101MH4# Applications

There are a lot of Elna America
RJH-50V101MH4# applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
