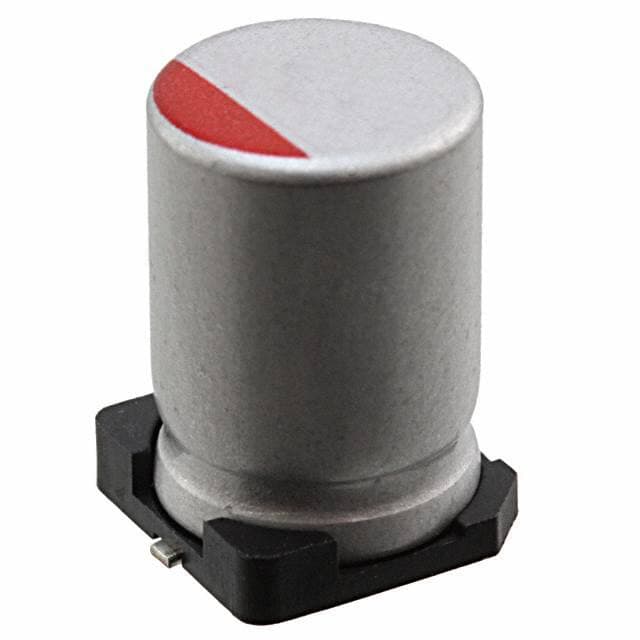

NICHICON RHS0E821MCN1GS
Manufacturer No:
RHS0E821MCN1GS
Manufacturer:
Package:
Radial, Can - SMD
Description:
820?F ±20% Radial, Can - SMD 0.461 11.70mm Tape & Reel (TR) 9mOhm FPCAP, RHS Surface Mount Polymer General Purpose
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
RHS0E821MCN1GS information
NICHICON RHS0E821MCN1GS technical specifications, attributes, parameters and parts with similar specifications to NICHICON RHS0E821MCN1GS.
- Type
- Parameter
- Factory Lead Time
- 18 Weeks
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- Radial, Can - SMD
- Surface Mount Land Size
- 0.327Lx0.327W 8.30mmx8.30mm
- Operating Temperature
- -55°C~105°C
- Packaging
- Tape & Reel (TR)
- Series
- FPCAP, RHS
- Published
- 2009
- Size / Dimension
- 0.315Dia 8.00mm
- Tolerance
- ±20%
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Termination
- SMD/SMT
- Type
- Polymer
- Max Operating Temperature
- 105°C
- Min Operating Temperature
- -55°C
- Applications
- General Purpose
- Voltage - Rated
- 2.5V
- Capacitance
- 820?F
- Voltage - Rated DC
- 2.5V
- ESR (Equivalent Series Resistance)
- 9mOhm
- Lifetime @ Temp
- 2000 Hrs @ 105°C
- Leakage Current
- 700?A
- Life (Hours)
- 2000 hours
- Ripple Current @ Low Frequency
- 540mA @ 120Hz
- Ripple Current @ High Frequency
- 5.4A @ 100kHz
- Dissipation Factor
- 0.12 %
- Diameter
- 8mm
- Height
- 8.3mm
- Height Seated (Max)
- 0.461 11.70mm
- Length
- 11.7mm
- Width
- 8.3mm
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for NICHICON RHS0E821MCN1GS.
Datasheets:
RHS0E821MCN1GS Overview
System power is determined by 5.4A @ 100kHz ripple current on a high frequency.Electrical device with 9mOhm ESR (Equivalent Series Resistance).To fully perform the function of 540mA @ 120Hz, a ripple current at low frequency must be provided.Moreover, the part has a dissipation factor 0.12 %.It is recommended to operate at -55°C~105°C for stable operation.
RHS0E821MCN1GS Features
5.4A @ 100kHz ripple current on a high frequency
a 9mOhm in ESR (Equivalent Series Resistance) in this electrical device
an operating temperature of -55°C~105°C
RHS0E821MCN1GS Applications
There are a lot of Nichicon
RHS0E821MCN1GS applications of aluminum polymer capacitors.
- LED driver power supplies
- Phone chargers
- Motherboards
- Servers and adapters (laptop power supplies)
- Medical equipment
- Switching Power Supply and DC/DC Converter.
- Buck up Power Supplies of CPU(VRM etc.)
- Miniature high Power Supply.
