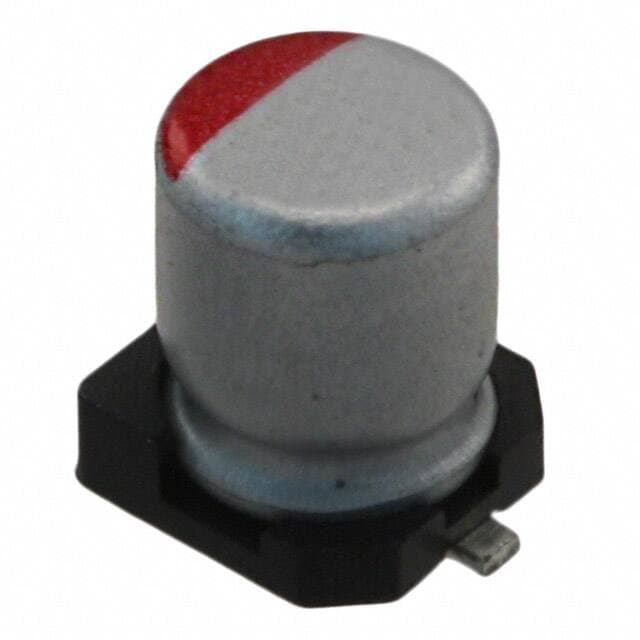

NICHICON RFS1A100MCN1GB

Manufacturer No:

RFS1A100MCN1GB

Manufacturer:

NICHICON

Package:

Radial, Can - SMD

Description:

10?F ±20% Radial, Can - SMD 0.205 5.20mm Tape & Reel (TR) 220mOhm FPCAP, RFS Surface Mount Polymer General Purpose

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

RFS1A100MCN1GB information

NICHICON RFS1A100MCN1GB technical specifications, attributes, parameters and parts with similar specifications to NICHICON RFS1A100MCN1GB.

Type
Parameter

Factory Lead Time
18 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
Radial, Can - SMD

Terminal Shape
FLAT

Surface Mount Land Size
0.169Lx0.169W 4.30mmx4.30mm

Operating Temperature
-55°C~105°C

Packaging
Tape & Reel (TR)

Series
FPCAP, RFS

Published
2009

Size / Dimension
0.157Dia 4.00mm

Tolerance
±20%

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
SMD/SMT

ECCN Code
EAR99

Type
Polymer

Terminal Finish
Matte Tin (Sn)

Applications
General Purpose

HTS Code
8532.22.00

Capacitance
10?F

ESR (Equivalent Series Resistance)
220mOhm

Polarity
POLARIZED

Size Code
2121

Lifetime @ Temp
2000 Hrs @ 105°C

Leakage Current
100?A

Ripple Current
700mA

Life (Hours)
2000 hours

Ripple Current @ Low Frequency
70mA @ 120Hz

Ripple Current @ High Frequency
700mA @ 100kHz

Dissipation Factor
0.12 %

Diameter
4mm

Height
4.3mm

Height Seated (Max)
0.205 5.20mm

Length
5.1mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NICHICON RFS1A100MCN1GB.

Datasheets:

nichicon-pcj1a391mcl1gs-datasheets-5842.pdf

RFS1A100MCN1GB Overview

700mA @ 100kHz ripple current @ high frequency is necessary to power systems.ESR (Equivalent Series Resistance) of 220mOhm is observed in this electrical device.This device requires a ripple current at low frequency to fully function.Various factors contribute to the dissipation factor of 0.12 %.In order to ensure stable operation, the operating temperature should be -55°C~105°C.

RFS1A100MCN1GB Features

700mA @ 100kHz ripple current on a high frequency
a 220mOhm in ESR (Equivalent Series Resistance) in this electrical device
an operating temperature of -55°C~105°C

RFS1A100MCN1GB Applications

There are a lot of Nichicon
RFS1A100MCN1GB applications of aluminum polymer capacitors.

LED driver power supplies
Phone chargers
Motherboards
Servers and adapters (laptop power supplies)
Medical equipment
Switching Power Supply and DC/DC Converter.
Buck up Power Supplies of CPU(VRM etc.)
Miniature high Power Supply.
