Qorvo RFPA2226

Manufacturer No:

RFPA2226

Manufacturer:

Qorvo

Package:

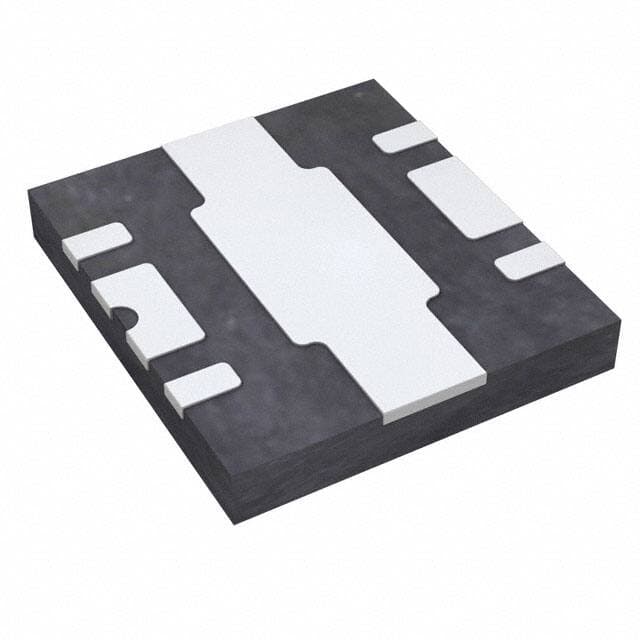

6-VDFN Exposed Pad

Description:

12.8dB WiFi, WiMAX NARROW BAND HIGH POWER Tape & Reel (TR) 2.2GHz~2.7GHz 5V P1dB:33dBm 4.3dB 445mA Surface Mount

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

RFPA2226 information

Qorvo RFPA2226 technical specifications, attributes, parameters and parts with similar specifications to Qorvo RFPA2226.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
6-VDFN Exposed Pad

Packaging
Tape & Reel (TR)

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Voltage - Supply
5V

Frequency
2.2GHz~2.7GHz

Test Frequency
2.7GHz

Operating Supply Current
445mA

Gain
12.8dB

RF/Microwave Device Type
NARROW BAND HIGH POWER

RF Type
WiFi, WiMAX

Noise Figure
4.3dB

P1dB
33dBm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Qorvo RFPA2226.

RFPA2226 Overview

This RF amplifier has a very low cost and is capable of NARROW BAND HIGH POWER RF/Microwave devices of any type.WiFi, WiMAX RF Amplifier type.High reliability is achieved by using advanced RF Amp' packagings Tape & Reel (TR).Since the RF power Amplifier is packed in 6-VDFN Exposed Pad, shipping overseas is convenient.The way to mount Amplifiers RF is Surface Mount.There is 5V voltage limit on the Amplifiers RF.Optimal performance can be achieved by operating the supply current in the 445mA range.

RFPA2226 Features

NARROW BAND HIGH POWER RF/Microwave Amplifier
RF Type WiFi, WiMAX
5V voltage

RFPA2226 Applications

There are a lot of RFMD
RFPA2226 RF Amplifiers applications.

Cellular Phones with GPS
Notebook PC
Ultra-Mobile PC
Recreational
Marine Navigation
Avionics
GPS
GLONASS
BeiDou
Galileo

User Guide
