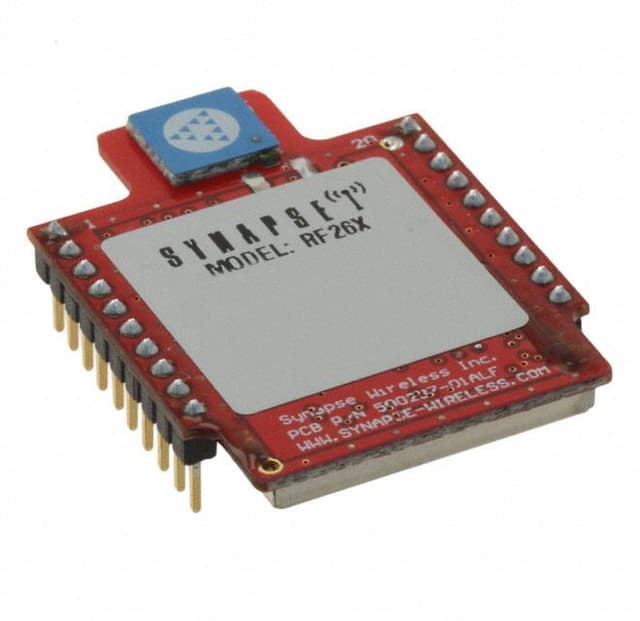

Synapse Wireless RF266PC1

Manufacturer No:

RF266PC1

Manufacturer:

Synapse Wireless

Package:

20-DIP Module

Description:

2.4GHz 802.15.4 -40°C~85°C 2.7V~3.6V I2C, SPI Tray Integrated, Chip 2Mbps 20dBm 20-DIP Module

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

RF266PC1 information

Synapse Wireless RF266PC1 technical specifications, attributes, parameters and parts with similar specifications to Synapse Wireless RF266PC1.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
20-DIP Module

Number of Pins
20

Operating Temperature
-40°C~85°C

Packaging
Tray

Series
SNAP® RF Engine®

Published
2012

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Voltage - Supply
2.7V~3.6V

Frequency
2.4GHz

Number of Channels
16

Interface
I2C, SPI

Memory Size
128kB Flash 4kB EEPROM 58kB RAM

Data Rate
2Mbps

Power - Output
20dBm

RF Family/Standard
802.15.4

Antenna Type
Integrated, Chip

Serial Interfaces
I2C, SPI

Current - Receiving
25mA

Current - Transmitting
130mA

Modulation
DSSS, O-QPSK

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Synapse Wireless RF266PC1.

RF266PC1 Overview

As a RF Transceiver' mounting method, Through Hole is used.Using the Tray package, this RF Transceiver module optimizes the performance of the RF Transceiver module 12v.In order for it to operate properly, Transceiver's operating temperature should be at -40°C~85°C.In order to operate high power RF Transceiver, 20 pins are required.A RF Transceiver Module, it is a member of the SNAP® RF Engine® family.RF Transceivers that can supply 2.7V~3.6V volts are available.A 2.4GHz frequency is used by the RF Transceiver Module.As a result of its Through Hole mounting, this Transceiver is widely used in a wide variety of applications.

RF266PC1 Features

Through Hole
Tray package
20 pins
2.7V~3.6V volts

RF266PC1 Applications

There are a lot of Synapse Wireless
RF266PC1 RF Transceiver Modules applications.

Switch
Power management
Internet of Things (IoT)
Secure Payment
Home and Security
Health and Fitness
Industrial and Data Logger
LED Lighting
Utility and Smart Energy
Thermostats
