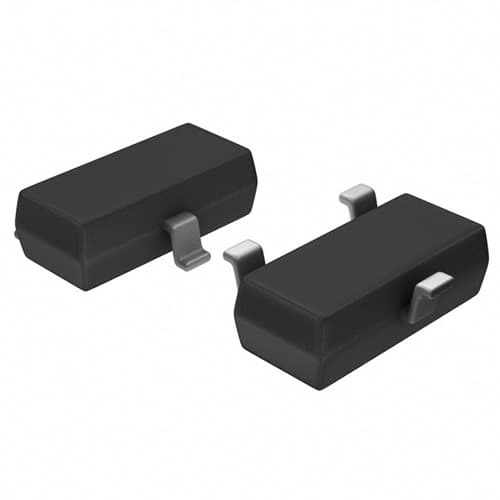

TI REG113NA-5/3KG4

Manufacturer No:

REG113NA-5/3KG4

Manufacturer:

Package:

SOT-5

Description:

Fixed PMIC 5 SOT-5

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

REG113NA-5/3KG4 information

TI REG113NA-5/3KG4 technical specifications, attributes, parameters and parts with similar specifications to TI REG113NA-5/3KG4.

Type
Parameter

Package / Case
SOT-5

Surface Mount
YES

Number of Pins
5

JESD-609 Code
e4

Pbfree Code
yes

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
5

ECCN Code
EAR99

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Other Regulators

Packing Method
TAPE AND REEL

Technology
NMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Pin Count
5

Number of Outputs
1

Output Type
Fixed

Max Output Current
400mA

Polarity
Positive

Current - Output
400mA

Accuracy
1.5 %

Max Output Voltage
5V

Voltage - Output
5V

Output Voltage 1
5V

Min Input Voltage
1.8V

Max Input Voltage
10V

Dropout Voltage
250mV

Dropout Voltage1-Nom
0.25V

Min Output Voltage
5V

Voltage Tolerance-Max
2.3%

Length
2.9mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for TI REG113NA-5/3KG4.

REG113NA-5/3KG4 Description

The REG113NA-5/3KG4 is a low-noise, low-dropout linear regulator with a low ground pin current. Its new DMOS topology provides a significant improvement over previous designs, including low-dropout voltage (only 250mV typ at full load), and better transient performance. In addition, no output capacitor is required for stability, unlike conventional low-dropout regulators that are difficult to compensate for and require expensive low ESR capacitors greater than 1μF.

REG113NA-5/3KG4 Features

Cap-free DMOS Topology:

250mV typ at 400mA

Output capacitor not required for stability

Up to 500mA peak, typical

Fast transient response

Very low noise: 28μVrms

High accuracy: ±1.5％max

Other output voltages available upon request

Foldback current limit

Thermal protection

REG113NA-5/3KG4 Applications

Portable communication devices

Battery-powered equipment

Personal digital assistants

Modems

Bar-code scanners

Backup power supplies
