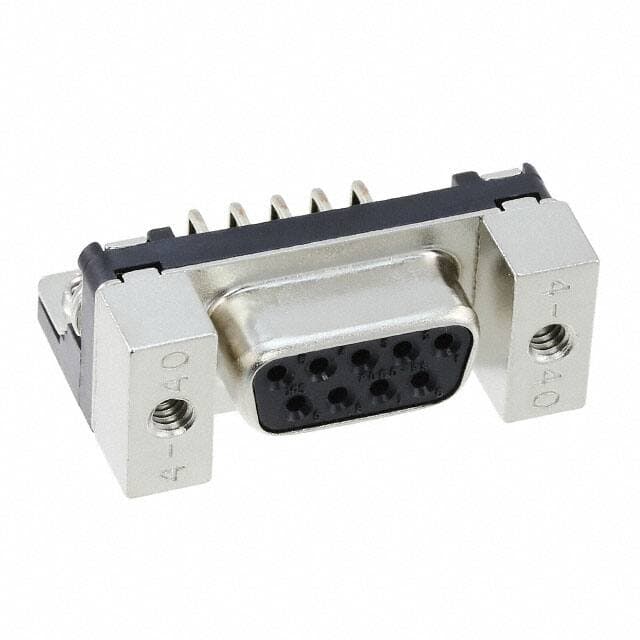

HIROSE RDED-9S-LN(4-40)(55)
Manufacturer No:
RDED-9S-LN(4-40)(55)
Manufacturer:
Package:
Description:
RD*D Series D-Sub Receptacle, Female Sockets 9-Position Signal Solder 1 DE E Panel Mount, Through Hole, Right Angle Phosphor Bronze Gold Steel, Nickel Plated
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
RDED-9S-LN(4-40)(55) information
HIROSE RDED-9S-LN(4-40)(55) technical specifications, attributes, parameters and parts with similar specifications to HIROSE RDED-9S-LN(4-40)(55).
- Type
- Parameter
- Factory Lead Time
- 10 Weeks
- Contact Material
- Phosphor Bronze
- Mount
- Through Hole
- Mounting Type
- Panel Mount, Through Hole, Right Angle
- Dielectric Material
- Polybutylene Terephthalate (PBT)
- Housing Material
- PBT
- Shell Material, Finish
- Steel, Nickel Plated
- Operating Temperature
- -55°C~85°C
- Packaging
- Tray
- Series
- RD*D
- Published
- 2003
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Termination
- Solder
- Connector Type
- Receptacle, Female Sockets
- Number of Positions
- 9
- Color
- Black
- Number of Rows
- 2
- Voltage - Rated
- 350V
- Contact Type
- Signal
- Reach Compliance Code
- unknown
- Current Rating
- 3A
- Contact Finish
- Gold
- Flange Feature
- Housing/Shell (4-40)
- Shell Size, Connector Layout
- 1 DE E
- Contact Finish Thickness
- 8.00?in 0.203?m
- Material Flammability Rating
- UL94 V-0
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for HIROSE RDED-9S-LN(4-40)(55).
RDED-9S-LN(4-40)(55) Overview
This product is packaged in a Receptacle, Female Sockets box.There is a Panel Mount, Through Hole, Right Angle mounting type for the device.This product is packaged in a case marked Tray.Product number RD*D belongs to the RD*D Series.There is a Through Hole mount on the part.This device operates at a temperature of -55°C~85°C.
RDED-9S-LN(4-40)(55) Features
RD*D series
RDED-9S-LN(4-40)(55) Applications
There are a lot of Hirose Electric Co Ltd
RDED-9S-LN(4-40)(55) D-Sub Connectors applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
