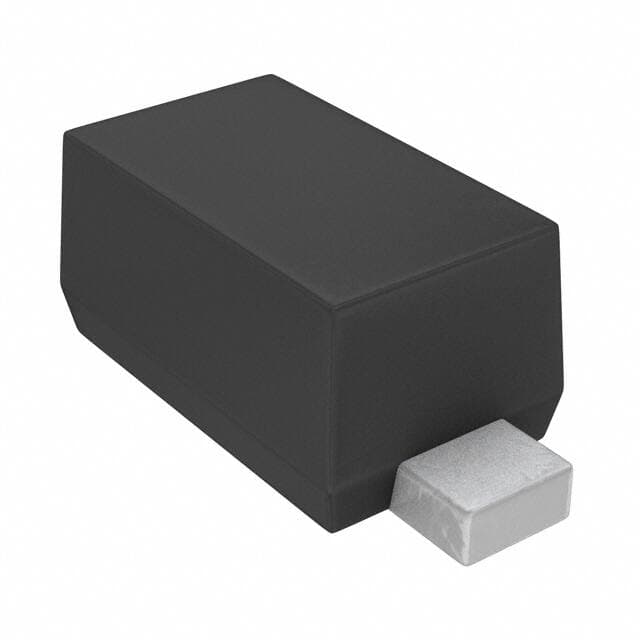

ROHM RB886GT2R

Manufacturer No:

RB886GT2R

Manufacturer:

ROHM

Package:

2-SMD, Flat Lead

Description:

Schottky Diode Rectifier Small Signal =< 200mA (Io), Any Speed 350mV @ 1mA 125°C Max 120?A @ 5V 2-Termination Tape & Reel (TR) 2-SMD, Flat Lead Surface Mount

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

RB886GT2R information

ROHM RB886GT2R technical specifications, attributes, parameters and parts with similar specifications to ROHM RB886GT2R.

Type
Parameter

Factory Lead Time
10 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
2-SMD, Flat Lead

Number of Pins
2

Diode Element Material
SILICON

Packaging
Tape & Reel (TR)

Published
2005

Part Status
Last Time Buy

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

ECCN Code
EAR99

Max Operating Temperature
125°C

Additional Feature
HIGH RELIABILITY

HTS Code
8541.10.00.70

Subcategory
Rectifier Diodes

Terminal Position
DUAL

Base Part Number
RB886G

Number of Elements
1

Element Configuration
Single

Speed
Small Signal =< 200mA (Io), Any Speed

Diode Type
Schottky

Current - Reverse Leakage @ Vr
120?A @ 5V

Voltage - Forward (Vf) (Max) @ If
350mV @ 1mA

Max Reverse Leakage Current
120?A

Operating Temperature - Junction
125°C Max

Output Current-Max
0.01A

Current - Average Rectified (Io)
10mA DC

Forward Voltage
350mV

Max Reverse Voltage (DC)
5V

Average Rectified Current
10mA

Peak Reverse Current
120?A

Max Repetitive Reverse Voltage (Vrrm)
15V

Capacitance @ Vr, F
0.8pF @ 1V 1MHz

Height
500?m

Length
1mm

Width
600?m

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ROHM RB886GT2R.

RB886GT2R Overview

This device produces a maximal reverse leakage current of 120?A volts.There is an average rectified current of 10mA volts for this device.The allowable value of forward current reaches 10mA.In terms of output current, 0.01A is the maximum value.In the datasheets, the peak reverse is 120?A, as indicated by the data chart.

RB886GT2R Features

a maximal reverse leakage current of 120?A volts
an average rectified current of 10mA volts
0.01A is the maximum value
the peak reverse is 120?A

RB886GT2R Applications

There are a lot of ROHM Semiconductor
RB886GT2R applications of single-phase diode rectifier.

DC motor control and drives
Battery chargers
Welders
Power converters
Reverse Polarity Protection
Ultra High-Speed Switching
Freewheeling
Polarity Protection Diode
Recirculating Diode
Switching Diode
