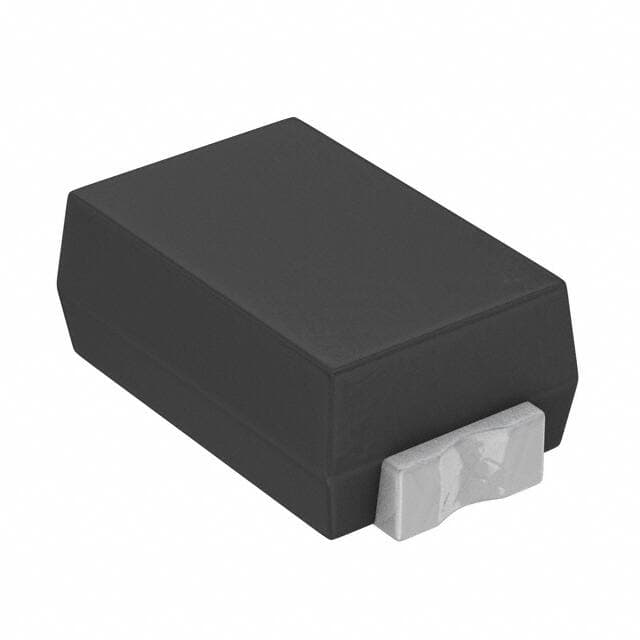

ROHM Semiconductor RB521CS-30T2R
Manufacturer No:
RB521CS-30T2R
Manufacturer:
Package:
SOD-923
Description:
Schottky Diode Rectifier Small Signal =< 200mA (Io), Any Speed 350mV @ 10mA 150°C Max 10?A @ 10V Tape & Reel (TR) SOD-923 Surface Mount
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
RB521CS-30T2R information
ROHM Semiconductor RB521CS-30T2R technical specifications, attributes, parameters and parts with similar specifications to ROHM Semiconductor RB521CS-30T2R.
- Type
- Parameter
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- SOD-923
- Number of Pins
- 2
- Packaging
- Tape & Reel (TR)
- Published
- 2005
- Pbfree Code
- yes
- Part Status
- Not For New Designs
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- ECCN Code
- EAR99
- Max Operating Temperature
- 150°C
- Min Operating Temperature
- -40°C
- HTS Code
- 8541.10.00.70
- Subcategory
- Rectifier Diodes
- Base Part Number
- RB521CS-30
- Number of Elements
- 1
- Element Configuration
- Single
- Speed
- Small Signal =< 200mA (Io), Any Speed
- Diode Type
- Schottky
- Current - Reverse Leakage @ Vr
- 10?A @ 10V
- Voltage - Forward (Vf) (Max) @ If
- 350mV @ 10mA
- Forward Current
- 100mA
- Max Reverse Leakage Current
- 10?A
- Operating Temperature - Junction
- 150°C Max
- Output Current-Max
- 0.1A
- Forward Voltage
- 350mV
- Max Reverse Voltage (DC)
- 30V
- Average Rectified Current
- 100mA
- Peak Reverse Current
- 10?A
- Max Repetitive Reverse Voltage (Vrrm)
- 30V
- Peak Non-Repetitive Surge Current
- 500mA
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for ROHM Semiconductor RB521CS-30T2R.
RB521CS-30T2R Overview
Reverse leakage current from this device is 10?A volts at its maximum.For this device, the average rectified current is 100mA volts.In this case, forward current can reach 100mA.Phase diode rectifier is possible to use a surge current of maximum value 500mA.0.1A represents the maximum output current.Based on the data chart, the peak reverse is 10?A.
RB521CS-30T2R Features
a maximal reverse leakage current of 10?A volts
an average rectified current of 100mA volts
0.1A is the maximum value
the peak reverse is 10?A
RB521CS-30T2R Applications
There are a lot of ROHM Semiconductor
RB521CS-30T2R applications of single-phase diode rectifier.
- DC motor control and drives
- Battery chargers
- Welders
- Power converters
- Reverse Polarity Protection
- Ultra High-Speed Switching
- Freewheeling
- Polarity Protection Diode
- Recirculating Diode
- Switching Diode
