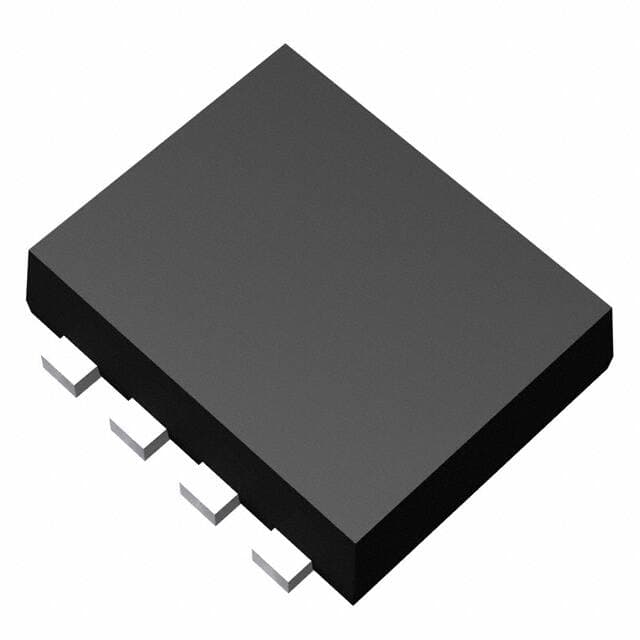

ROHM RB061US-30TR

Manufacturer No:

RB061US-30TR

Manufacturer:

ROHM

Package:

8-SMD

Description:

Schottky Rectifier Diode 2 Independent Fast Recovery =< 500ns, > 200mA (Io) 125°C Max 2A 30V-DC 2-Element 8-SMD Surface Mount

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

RB061US-30TR information

ROHM RB061US-30TR technical specifications, attributes, parameters and parts with similar specifications to ROHM RB061US-30TR.

Type
Parameter

Factory Lead Time
12 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
8-SMD

Number of Pins
8

Diode Element Material
SILICON

Packaging
Tape & Reel (TR)

Published
2011

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Max Operating Temperature
125°C

Additional Feature
HIGH RELIABILITY

Terminal Form
FLAT

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
RB061US-30

Number of Elements
2

Element Configuration
Dual

Speed
Fast Recovery =< 500ns, > 200mA (Io)

Diode Type
Schottky

Current - Reverse Leakage @ Vr
900?A @ 15V

Voltage - Forward (Vf) (Max) @ If
400mV @ 2A

Operating Temperature - Junction
125°C Max

Output Current-Max
2A

Application
GENERAL PURPOSE

Forward Voltage
350mV

Max Reverse Voltage (DC)
30V

Average Rectified Current
2A

Number of Phases
1

Reverse Recovery Time
20 ns

Peak Reverse Current
900?A

Max Repetitive Reverse Voltage (Vrrm)
30V

Diode Configuration
2 Independent

Max Forward Surge Current (Ifsm)
8A

Reverse Voltage (DC)
30V

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ROHM RB061US-30TR.

Datasheets:

rohmsemiconductor-rb061us30tr-datasheets-0385.pdf

RB061US-30TR Overview

In this case, the forward voltage has to be set at 350mV to operate the device.An output voltage of 2A is the maximum it can handle.In this case, the forward voltage has to be set at 2A to operate the device.A reverse voltage peak of 900?A is applied to devices like this one.

RB061US-30TR Features

350mV forward voltage
a maximum output voltage of 2A
a peak voltage of 900?A
a reverse voltage peak of 900?A

RB061US-30TR Applications

There are a lot of ROHM Semiconductor
RB061US-30TR applications of rectifier diode array.

Rectifier for drives applications
Crowbar applications
Rectifiers for UBS
Battery chargers
Rectifiers in switch mode power supplies (SMPS)
Free wheeling diode in low voltage converters
General Rectification
