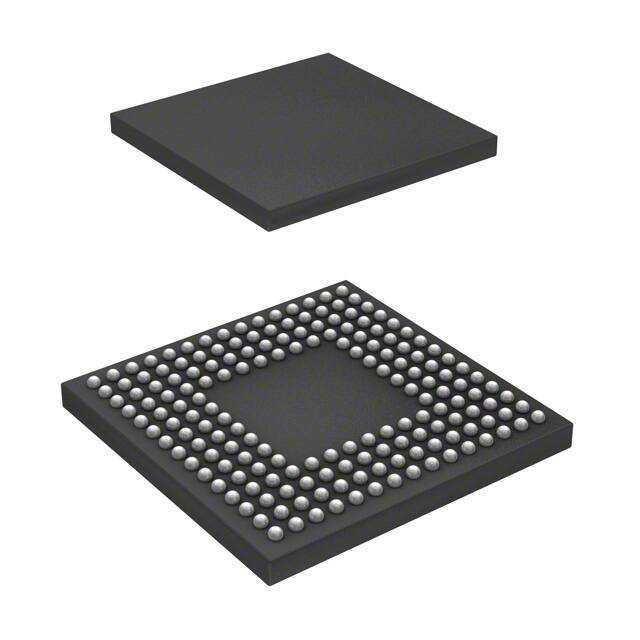

Renesas R7S721020VCBG#AC1

Manufacturer No:

R7S721020VCBG#AC1

Manufacturer:

Renesas

Package:

176-LFBGA

Description:

0.5mm ARM® Cortex®-A9 1.183.3V 32-bit Microprocessor RZ/A1L Series 176-Pin 400MHz 1.18V 176-LFBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

R7S721020VCBG#AC1 information

Renesas R7S721020VCBG#AC1 technical specifications, attributes, parameters and parts with similar specifications to Renesas R7S721020VCBG#AC1.

Type
Parameter

Factory Lead Time
20 Weeks

Package / Case
176-LFBGA

Surface Mount
YES

Number of Pins
176

Operating Temperature
-40°C~85°C TA

Packaging
Tray

Series
RZ/A1L

Published
2016

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
176

Subcategory
Microcontrollers

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Supply Voltage
1.18V

Terminal Pitch
0.5mm

Frequency
400MHz

Pin Count
176

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
1.26V

Power Supplies
1.183.3V

Supply Voltage-Min (Vsup)
1.1V

Oscillator Type
External

Number of I/O
78

Memory Type
ROMless

uPs/uCs/Peripheral ICs Type
MICROCONTROLLER, RISC

Core Processor
ARM® Cortex®-A9

Peripherals
DMA, POR, PWM, WDT

Supply Current-Max
492mA

Bit Size
32

Has ADC
YES

DMA Channels
YES

PWM Channels
YES

DAC Channels
NO

Address Bus Width
26

Core Architecture
ARM

CPU Family
CORTEX-A9

External Data Bus Width
32

Voltage - I/O
1.2V 3.3V

RAM (bytes)
3145728

Ethernet
10/100Mbps

Number of Cores/Bus Width
1 Core 32-Bit

Graphics Acceleration
Yes

RAM Controllers
SDRAM, SRAM

USB
USB 2.0 (2)

Download datasheets and manufacturer documentation for Renesas R7S721020VCBG#AC1.

ConflictMineralStatement:

nec-dn1c100m1s-conflictmineralstatement-8243.pdf

R7S721020VCBG#AC1 Overview

The embedded microprocessor ships overseas conveniently packed in 176-LFBGA. A high level of reliability is provided by using an advanced packaging method Tray. In the CPU, there are 1 Core 32-Bit cores and 1 Core 32-Bit bus width. It is important to understand the operating temperature around -40°C~85°C TA. RZ/A1L is its series number. Core-wise, this CPU has a ARM® Cortex®-A9 processor. It has SDRAM, SRAM RAM controllers. A CAN, I2C, IEBus, IrDA, LIN, MediaLB, MMC/SD/SDIO, SCI, SCI FIFO, SPDIF, SPI, SSI interface has been added to this microprocessor in order to serve the user better. As far as I/O is concerned, this CPU runs at 1.2V 3.3V. There is MICROCONTROLLER, RISC MICROCONTROLLER, RISC in the uPs, uCs, or peripheral ICs categories. A total of 176 terminations have been recorded. Turn on the cpu microprocessor and let it run with a 1.18V voltage supply. There are 32 bits in its architecture. 400MHz is the frequency of the CPU. 176 pin functions are described in the datasheets. With a maximum supply current of 1.26V, it has a maximum power consumption. As a Microcontrollers, this cpu microprocessor is typical. The CPU's external data bus width is 32. Injecting pins into the embedded microprocessor body results in 176 pins. It is specified in the datasheet that this micro processor requires 1.183.3V power supplies. 492mA voltage higher than 492mA can be supplied to the CPU. CPU programs transfer data via 78 I/Os. CPU has DMA, POR, PWM, WDT peripheral devices connected. As a CORTEX-A9 embedded microprocessor, it belongs to the class of devices.

R7S721020VCBG#AC1 Features

ARM® Cortex®-A9 Core
32-Bit Structure
78 I/Os
DMA, POR, PWM, WDT Peripherals
CORTEX-A9 CPU Family
