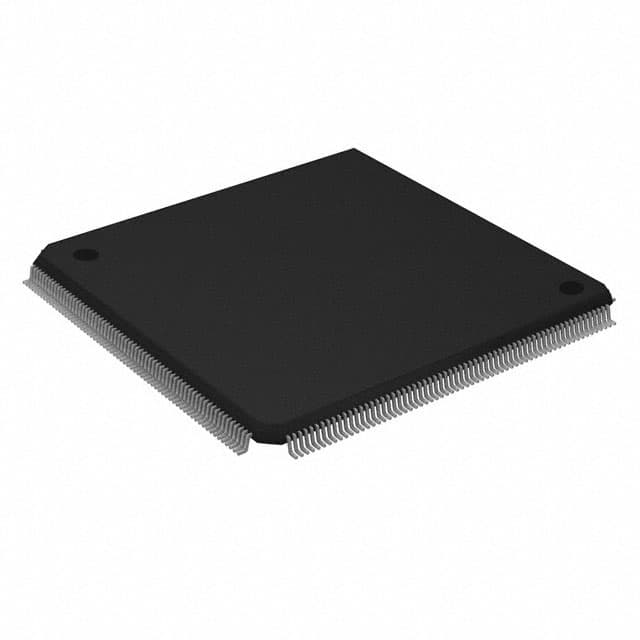

Renesas R7S721010VLFP#AA0

Manufacturer No:

R7S721010VLFP#AA0

Manufacturer:

Renesas

Package:

256-LQFP

Description:

0.4mm ARM® Cortex®-A9 32-bit Microprocessor RZ/A1M Series 256-Pin 400MHz 1.18V 256-LQFP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

R7S721010VLFP#AA0 information

Renesas R7S721010VLFP#AA0 technical specifications, attributes, parameters and parts with similar specifications to Renesas R7S721010VLFP#AA0.

Type
Parameter

Factory Lead Time
20 Weeks

Package / Case
256-LQFP

Surface Mount
YES

Number of Pins
256

Operating Temperature
-40°C~85°C TA

Packaging
Tray

Series
RZ/A1M

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
256

Terminal Position
QUAD

Terminal Form
GULL WING

Supply Voltage
1.18V

Terminal Pitch
0.4mm

Frequency
400MHz

Pin Count
256

Supply Voltage-Max (Vsup)
1.26V

Supply Voltage-Min (Vsup)
1.1V

Interface
CAN, EBI/EMI, I2C, LIN, MMC, SCI, SD, SPI, UART, USART, USB

Oscillator Type
External

Number of I/O
115

Memory Type
ROMless

uPs/uCs/Peripheral ICs Type
MICROCONTROLLER, RISC

Peripherals
DMA, POR, PWM, WDT

Bit Size
32

Has ADC
YES

DMA Channels
YES

PWM Channels
YES

Address Bus Width
26

Core Architecture
ARM

External Data Bus Width
32

Voltage - I/O
1.2V 3.3V

Ethernet
10/100Mbps (1), 100Mbps (1)

Number of Cores/Bus Width
1 Core 32-Bit

Graphics Acceleration
Yes

RAM Controllers
SDRAM, SRAM

USB
USB 2.0 (2)

Additional Interfaces
CAN, I2C, IEBus, IrDA, LIN, MediaLB, MMC/SD/SDIO, SCI, SCI FIFO, SPDIF, SPI, SSI

Co-Processors/DSP
Multimedia; NEON? MPE

Display & Interface Controllers
DVD, VDC

Length
28mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas R7S721010VLFP#AA0.

ConflictMineralStatement:

nec-dn1c100m1s-conflictmineralstatement-8243.pdf

R7S721010VLFP#AA0 Overview

Shipping overseas is convenient thanks to the embedded microprocessor's packaging in 256-LQFP. High reliability is achieved using advanced packaging method Tray. 1 Core 32-Bit cores/Bus width are present in the CPU. Identify the operating temperature around -40°C~85°C TA. In the RZ/A1M series, it is found. The CPU is cored by a processor with a number of 0 cores. A total of SDRAM, SRAM RAM controllers are used by this CPU. The microprocessor features interfaces CAN, I2C, IEBus, IrDA, LIN, MediaLB, MMC/SD/SDIO, SCI, SCI FIFO, SPDIF, SPI, SSI for better service. At 1.2V 3.3V, the CPU runs its I/O. A MICROCONTROLLER, RISC represents the uPs/uCs/Peripheral ICs type. In total, 256 terminations have been made. Using a 1.18V voltage supply, the microprocessor should turn on and run. It is an architecture with 32 bits. CPUs operate with a frequency of 400MHz Hz. You can refer to the datasheets for the functions of 256 pins. The maximum supply current of this microprocessor is 1.26V. With a 32 width external data bus, this CPU has a wide external data bus. An injection of 256 pins is performed inside the body of the micro processor. A CPU program transfers data by using 115 I/Os. A CPU is connected to DMA, POR, PWM, WDT peripheral devices.

R7S721010VLFP#AA0 Features

ARM® Cortex®-A9 Core
32-Bit Structure
115 I/Os
DMA, POR, PWM, WDT Peripherals

R7S721010VLFP#AA0 Applications

There are a lot of Renesas Electronics America
R7S721010VLFP#AA0 Microprocessor applications.

Television
Heater/Fan
Calculator
Kindle
Christmas lights
3D printers
Washing machine
Microwave ovens
Home appliances
Home video and audio
