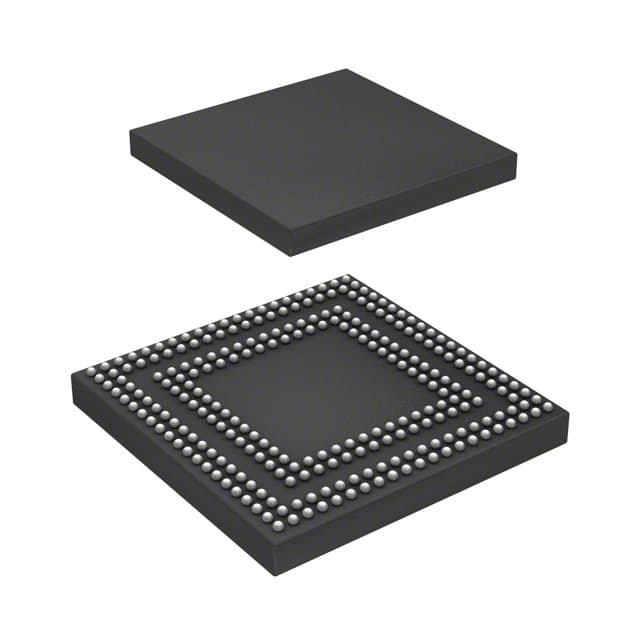

Renesas R7S721010VCBG#AC0

Manufacturer No:

R7S721010VCBG#AC0

Manufacturer:

Renesas

Package:

256-LFBGA

Description:

0.5mm ARM® Cortex®-A9 32-bit Microprocessor RZ/A1M Series 256-Pin 400MHz 1.18V 256-LFBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

R7S721010VCBG#AC0 information

Renesas R7S721010VCBG#AC0 technical specifications, attributes, parameters and parts with similar specifications to Renesas R7S721010VCBG#AC0.

Type
Parameter

Factory Lead Time
20 Weeks

Package / Case
256-LFBGA

Surface Mount
YES

Number of Pins
256

Operating Temperature
-40°C~85°C TA

Packaging
Tray

Series
RZ/A1M

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
256

Terminal Position
BOTTOM

Terminal Form
BALL

Supply Voltage
1.18V

Terminal Pitch
0.5mm

Frequency
400MHz

Pin Count
256

Supply Voltage-Max (Vsup)
1.26V

Supply Voltage-Min (Vsup)
1.1V

Interface
CAN, EBI/EMI, I2C, LIN, MMC, SCI, SD, SPI, UART, USART, USB

Oscillator Type
External

Number of I/O
115

Memory Type
ROMless

uPs/uCs/Peripheral ICs Type
MICROCONTROLLER, RISC

Peripherals
DMA, POR, PWM, WDT

Bit Size
32

Has ADC
YES

DMA Channels
YES

PWM Channels
YES

Address Bus Width
26

Core Architecture
ARM

External Data Bus Width
32

Voltage - I/O
1.2V 3.3V

Ethernet
10/100Mbps (1), 100Mbps (1)

Number of Cores/Bus Width
1 Core 32-Bit

Graphics Acceleration
Yes

RAM Controllers
SDRAM, SRAM

USB
USB 2.0 (2)

Additional Interfaces
CAN, I2C, IEBus, IrDA, LIN, MediaLB, MMC/SD/SDIO, SCI, SCI FIFO, SPDIF, SPI, SSI

Co-Processors/DSP
Multimedia; NEON? MPE

Display & Interface Controllers
DVD, VDC

Length
11mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas R7S721010VCBG#AC0.

ConflictMineralStatement:

nec-dn1c100m1s-conflictmineralstatement-8243.pdf

R7S721010VCBG#AC0 Overview

Shipping overseas is convenient since the embedded microprocessor is packed in 256-LFBGA. In order to provide high reliability, advanced packaging method Tray is used. Cores/Bus width is 1 Core 32-Bit. Recognize operating temperatures around -40°C~85°C TA. The cpu microprocessor belongs to the RZ/A1M series. The CPU is cored with a ARM® Cortex®-A9 processor. The CPU uses SDRAM, SRAM RAM controllers. This microprocessor features interfaces CAN, I2C, IEBus, IrDA, LIN, MediaLB, MMC/SD/SDIO, SCI, SCI FIFO, SPDIF, SPI, SSI. In this CPU, I/O is set to 1.2V 3.3V. In terms of uPs and uCs as well as peripheral ICs, this is a MICROCONTROLLER, RISC. In total, there are 256 terminations. When the voltage supply is 1.18V, the cpu microprocessor should be powered on and run. In terms of architecture, it is a 32-Bit system. There is 400MHz frequency set for the CPU. You can find information about the functions of 256 pins in the datasheets. It can supply a maximum current of 1.26V. 32 is the width of the external data bus on this CPU. Embedded microprocessor bodies are injected with 256 pins. Programs on the CPU transfer data through 115 I/Os. There are DMA, POR, PWM, WDT peripheral devices attached to the CPU.

R7S721010VCBG#AC0 Features

ARM® Cortex®-A9 Core
32-Bit Structure
115 I/Os
DMA, POR, PWM, WDT Peripherals

R7S721010VCBG#AC0 Applications

There are a lot of Renesas Electronics America
R7S721010VCBG#AC0 Microprocessor applications.

Consumer electronics products
Toys
Robots
Radio
Television
Heater/Fan
Calculator
Kindle
Christmas lights
3D printers
