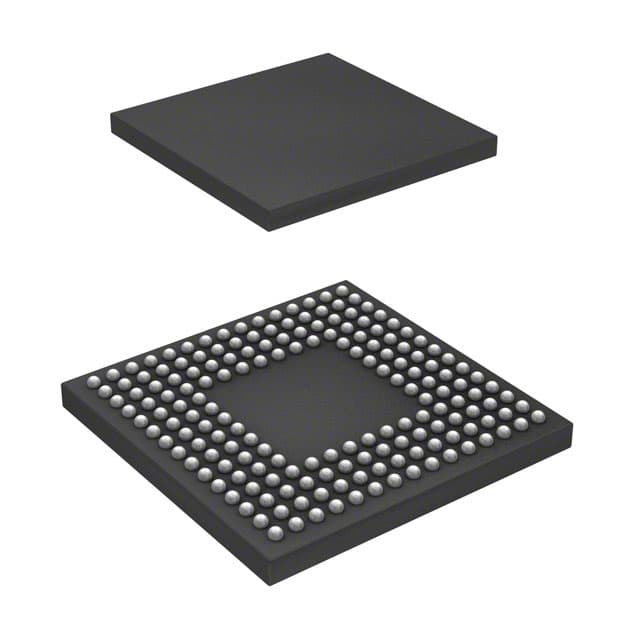

Renesas R5F56216BDBG#U0

Manufacturer No:

R5F56216BDBG#U0

Manufacturer:

Renesas

Package:

176-LFBGA

Description:

256KB 256K x 8 FLASH RX 32-Bit Microcontroller RX600 Series R5F5621 176 Pin 100MHz 3V 176-LFBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

R5F56216BDBG#U0 information

Renesas R5F56216BDBG#U0 technical specifications, attributes, parameters and parts with similar specifications to Renesas R5F56216BDBG#U0.

Type
Parameter

Factory Lead Time
20 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
176-LFBGA

Number of Pins
176

Operating Temperature
-40°C~85°C TA

Packaging
Tray

Series
RX600

Published
2011

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
176

Additional Feature
A/D CONVERTERS CAN ALSO CONFIGURED AS 4-CH 10-BIT (2)

HTS Code
8542.31.00.01

Subcategory
Microcontrollers

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Supply Voltage
3V

Terminal Pitch
0.8mm

Frequency
100MHz

Base Part Number
R5F5621

Pin Count
176

Supply Voltage-Max (Vsup)
3.6V

Interface
CAN, EBI/EMI, I2C, SCI, SPI, USB

Memory Size
256kB

Oscillator Type
Internal

Number of I/O
126

RAM Size
64K x 8

Voltage - Supply (Vcc/Vdd)
2.7V~3.6V

uPs/uCs/Peripheral ICs Type
MICROCONTROLLER

Core Processor
RX

Peripherals
DMA, LVD, POR, PWM, WDT

Program Memory Type
FLASH

Core Size
32-Bit

Program Memory Size
256KB 256K x 8

Connectivity
CANbus, EBI/EMI, I2C, SCI, SPI, USB

Supply Current-Max
100mA

Bit Size
32

Data Converter
A/D 8x10/12b; D/A 2x10b

Watchdog Timer
Yes

Has ADC
YES

DMA Channels
YES

PWM Channels
YES

DAC Channels
YES

Number of Timers/Counters
20

Download datasheets and manufacturer documentation for Renesas R5F56216BDBG#U0.

Datasheets:

renesaselectronicsamerica-r5f56218bdfbv0-datasheets-2093.pdf

ConflictMineralStatement:

nec-dn1c100m1s-conflictmineralstatement-8243.pdf

R5F56216BDBG#U0 Overview

This Microcontroller comes in a 176-LFBGA package. This Microcontroller has 126 I/Os. The Mounting Type of the Microcontroller is Surface Mount. The MCU is based on the 32-Bit core. This Microcontroller's program memory type is FLASH. The Microcontroller runs in -40°C~85°C TA Operating Temperature. Microcontroller runs in RX600 Series. The size of the program memory of Microcontroller is 256KB 256K x 8. MCU is powered by RX Core Processor. The device belongs to MICROCONTROLLER uPs/uCs/Peripheral ICs Type. The MCU has a number of 176 terminals. Microcontroller comes with 32 bit size. The component always operates in 3V supply voltage. MCU chip has YES DMA channels. The part owns 256kB memory size. You can find alternatives through the base part number R5F5621. MCU's frequency is 100MHz. The device works in YES PWM channels. The pin number of the component remains 176. It has 20 timers/counters. It counts 176 pins. To name a few, there are additional features like A/D CONVERTERS CAN ALSO CONFIGURED AS 4-CH 10-BIT (2).

R5F56216BDBG#U0 Features

176-LFBGA package
Mounting type of Surface Mount
