Renesas R5F52306ADND#U0
Renesas R5F52306ADND#U0

Renesas R5F52306ADND#U0

Manufacturer No:

R5F52306ADND#U0

Manufacturer:

Renesas

Package:

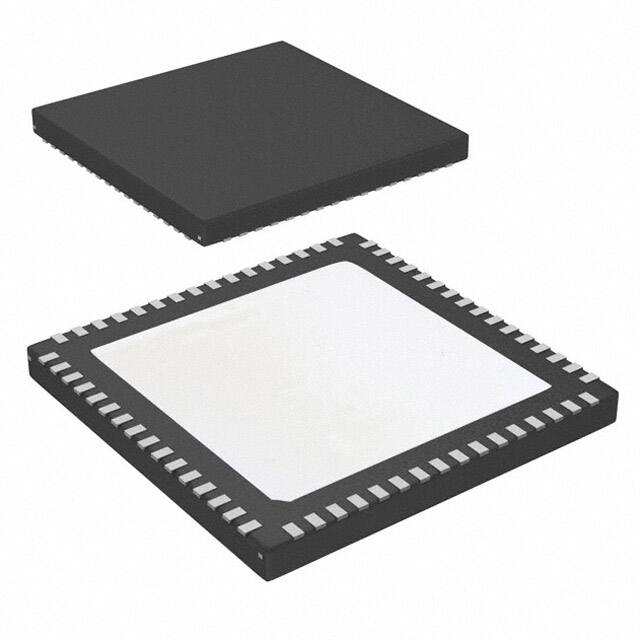

64-WFQFN Exposed Pad

Description:

256KB 256K x 8 FLASH RXv2 32-Bit Microcontroller RX200 Series 64 Pin 2V 64-WFQFN Exposed Pad

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

R5F52306ADND#U0 information

Renesas R5F52306ADND#U0 technical specifications, attributes, parameters and parts with similar specifications to Renesas R5F52306ADND#U0.

  • Type
  • Parameter
  • Factory Lead Time
  • 20 Weeks
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 64-WFQFN Exposed Pad
  • Surface Mount
  • YES
  • Number of Pins
  • 64
  • Operating Temperature
  • -40°C~85°C TA
  • Packaging
  • Tray
  • Series
  • RX200
  • Published
  • 2015
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 64
  • HTS Code
  • 8542.31.00.01
  • Technology
  • CMOS
  • Terminal Position
  • QUAD
  • Terminal Form
  • NO LEAD
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Supply Voltage
  • 2V
  • Terminal Pitch
  • 0.5mm
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Pin Count
  • 64
  • Supply Voltage-Max (Vsup)
  • 5.5V
  • Supply Voltage-Min (Vsup)
  • 1.8V
  • Number of I/O
  • 47
  • Speed
  • 54MHz
  • RAM Size
  • 32K x 8
  • Voltage - Supply (Vcc/Vdd)
  • 1.8V~5.5V
  • uPs/uCs/Peripheral ICs Type
  • MICROCONTROLLER
  • Core Processor
  • RXv2
  • Peripherals
  • DMA, LVD, POR, PWM, WDT
  • Clock Frequency
  • 20MHz
  • Program Memory Type
  • FLASH
  • Core Size
  • 32-Bit
  • Program Memory Size
  • 256KB 256K x 8
  • Connectivity
  • I2C, IrDA, SCI, SPI, SSI
  • Bit Size
  • 32
  • Data Converter
  • A/D 12x12b; D/A 2x12b
  • Has ADC
  • YES
  • DMA Channels
  • YES
  • PWM Channels
  • YES
  • DAC Channels
  • YES
  • ROM (words)
  • 262144
  • EEPROM Size
  • 8K x 8
  • On Chip Program ROM Width
  • 8
  • RAM (bytes)
  • 32768
  • Length
  • 9mm

Download datasheets and manufacturer documentation for Renesas R5F52306ADND#U0.

Datasheets:

ConflictMineralStatement:

R5F52306ADND#U0 Overview
