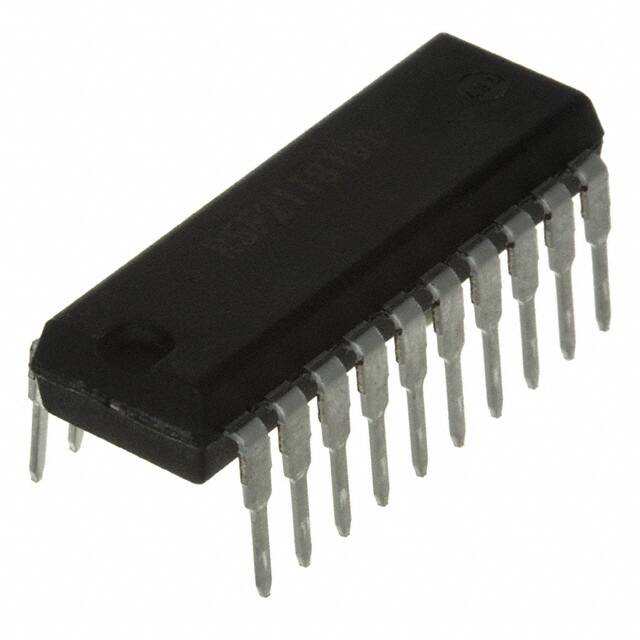

Renesas R5F211B1DD#U0

Manufacturer No:

R5F211B1DD#U0

Manufacturer:

Renesas

Package:

DIP

Description:

Microcontroller 20 Pin 20MHz 3.3V DIP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

R5F211B1DD#U0 information

Renesas R5F211B1DD#U0 technical specifications, attributes, parameters and parts with similar specifications to Renesas R5F211B1DD#U0.

Type
Parameter

Package / Case
DIP

Surface Mount
NO

Number of Pins
20

Packaging
Tube

Published
2006

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
20

Max Operating Temperature
85°C

Min Operating Temperature
-20°C

Additional Feature
IT ALSO OPERATES IN 2.7V AT 10MHZ

Subcategory
Microcontrollers

Max Power Dissipation
300mW

Technology
CMOS

Terminal Position
DUAL

Terminal Form
THROUGH-HOLE

Supply Voltage
3.3V

Terminal Pitch
1.778mm

Frequency
20MHz

Pin Count
20

Supply Voltage-Max (Vsup)
5.5V

Temperature Grade
OTHER

Supply Voltage-Min (Vsup)
3V

Memory Size
4kB

Oscillator Type
Internal

Number of I/O
13

RAM Size
384B

Memory Type
FLASH

uPs/uCs/Peripheral ICs Type
MICROCONTROLLER

Peripherals
POR, Voltage Detect, WDT

Bit Size
16

Watchdog Timer
Yes

Access Time
20 μs

Has ADC
YES

DMA Channels
NO

Data Bus Width
16b

PWM Channels
NO

DAC Channels
NO

Number of Timers/Counters
3

ROM (words)
4096

Core Architecture
R8C

CPU Family
R8C

RAM (bytes)
384

Length
19mm

Height Seated (Max)
4.5mm

Radiation Hardening
No

Download datasheets and manufacturer documentation for Renesas R5F211B1DD#U0.

Datasheets:

renesaselectronicsamerica-r5f211b4spu0-datasheets-1441.pdf

ConflictMineralStatement:

nec-dn1c100m1s-conflictmineralstatement-8243.pdf

R5F211B1DD#U0 Overview

The package is DIP-shaped. There are 13 I/Os. This device belongs to the MICROCONTROLLER uPs/uCs/Peripheral ICs category. IC Chip 20 has 20 terminations. 16-bits are used for its size. IC Chip has 3.3V volt supply outputs. With NO DMA channels, Microcontroller chip can handle large data transfers. 4kB is the size of the memory in the IC part. Using a 20MHz frequency, this electronic part can perform efficiently. Devices work in NO PWM channels. On the chip, 20 pins are accessible. In total, there are 3 timers/counters on the device. The pin count is 20. There is an embedded the R8C CPU family inside the device, which makes it a powerful device. There is FLASH memory on this piece of equipment. In addition, it comes with a R8C core architecture. In addition to the above, there are other features such as IT ALSO OPERATES IN 2.7V AT 10MHZ, to name but a few.

R5F211B1DD#U0 Features

DIP package
Microcontrollers subcategory
Minimum temperature of -20°C

R5F211B1DD#U0 Applications

There are a lot of Renesas Electronics America
R5F211B1DD#U0 Microcontroller applications.

Instrument control
Toys
Robots
Radio
Television
Heater/Fan
Calculator
Kindle
Christmas lights
3D printers
