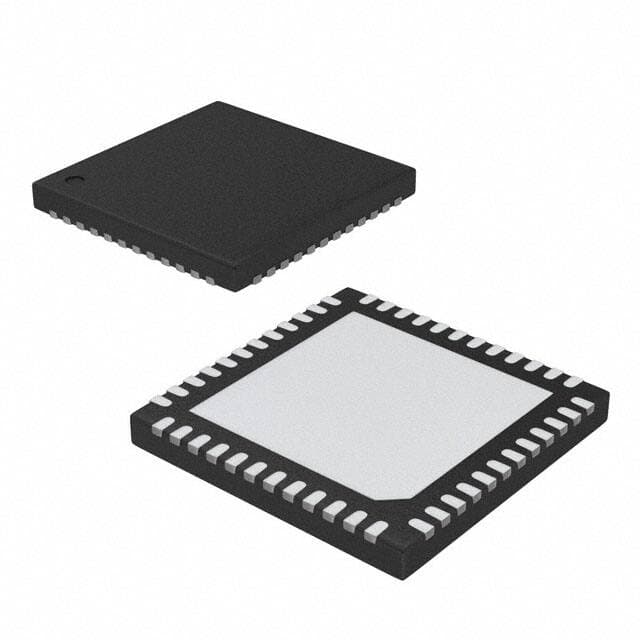

Renesas R5F11AGGANB#20

Manufacturer No:

R5F11AGGANB#20

Manufacturer:

Renesas

Package:

48-WFQFN Exposed Pad

Description:

128KB 128K x 8 FLASH RL78 16-Bit Microcontroller RL78/G1D Series 48 Pin 32MHz 48-WFQFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

R5F11AGGANB#20 information

Renesas R5F11AGGANB#20 technical specifications, attributes, parameters and parts with similar specifications to Renesas R5F11AGGANB#20.

Type
Parameter

Factory Lead Time
20 Weeks

Mounting Type
Surface Mount

Package / Case
48-WFQFN Exposed Pad

Number of Pins
48

Operating Temperature
-40°C~85°C TA

Packaging
Tray

Series
RL78/G1D

Published
2015

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

HTS Code
8542.31.00.01

Technology
CMOS

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Frequency
32MHz

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
48

Interface
I2C, UART, USART

Memory Size
128kB

Oscillator Type
Internal

Number of I/O
32

RAM Size
12K x 8

Voltage - Supply (Vcc/Vdd)
1.6V~3.6V

uPs/uCs/Peripheral ICs Type
MICROCONTROLLER

Peripherals
DMA, LVD, POR, PWM, WDT

Program Memory Type
FLASH

Core Size
16-Bit

Program Memory Size
128KB 128K x 8

Connectivity
CSI, I2C, UART/USART

Data Converter
A/D 8x10b

EEPROM Size
8K x 8

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas R5F11AGGANB#20.

ConflictMineralStatement:

nec-dn1c100m1s-conflictmineralstatement-8243.pdf

R5F11AGGANB#20 Overview

A 48-WFQFN Exposed Pad package is included. In total, it has 32 inputs and outputs. This Microcontroller is mounted using the Surface Mount mounting type. Powered by the 16-Bit core, it offers a wide range of capabilities. The type of memory that the program uses is FLASH. The temperature range of this Microcontroller is within the range of -40°C~85°C TA. RL78/G1D series components belong to this electrical component. Its program memory size is 128KB 128K x 8. There is a RL78 Core Processor inside MCU that provides this device with its power. MICROCONTROLLER uPs, uCs, and peripheral ICs make up the Microcontroller. 128kB memory size belongs to the part. A good performance can be achieved at a frequency of 32MHz, as long as it is operated at a low power consumption. On the chip, there are 48 pins that are accessible. A total of 48 pins are present.
