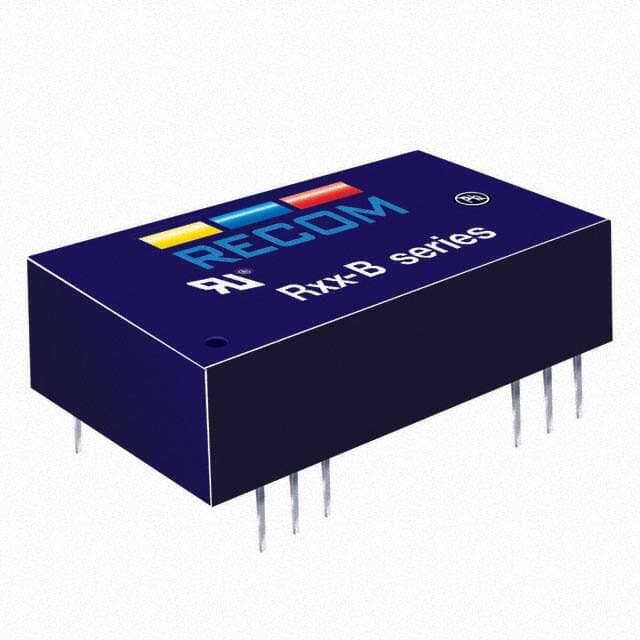

Recom R24-100B

Manufacturer No:

R24-100B

Manufacturer:

Recom

Package:

24-DIP Module

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

R24-100B information

Recom R24-100B technical specifications, attributes, parameters and parts with similar specifications to Recom R24-100B.

Type
Parameter

Factory Lead Time
9 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
24-DIP Module

Number of Pins
12

Weight
12g

Operating Temperature
-40°C~85°C With Derating

Packaging
Tube

Series
INNOLINE Rxx-B (5W)

Size / Dimension
1.25Lx0.80W x 0.37 H 31.8mmx20.3mmx9.4mm

Feature
SCP

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
12

ECCN Code
EAR99

Type
High Voltage - Isolated Module

Applications
ITE (Commercial)

Max Power Dissipation
5W

Technology
HYBRID

Terminal Position
DUAL

Terminal Form
PIN/PEG

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Terminal Pitch
2.54mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Number of Outputs
1

Qualification Status
Not Qualified

Efficiency
84%

Voltage - Isolation
3kV

Output Voltage
135V

Max Output Current
50mA

Voltage - Output 1
56V~135V

Input Voltage-Nom
24V

Trim/Adjustable Output
YES

Output Current
50mA

Output Power
5W

Max Output Voltage
135V

Control Mode
VOLTAGE-MODE

Current - Output 1
50mA

Nominal Input Voltage
24V

Max Output Power
5W

Isolation
Isolated

Nominal Output Voltage
100V

Max Input Voltage (DC)
27V

Min Input Voltage (DC)
21V

Height
9.4mm

Width
20.3mm

Download datasheets and manufacturer documentation for Recom R24-100B.

Datasheets:

recompower-r24100b-datasheets-7970.pdf

recompower-r24100b-datasheets-4982.pdf

Description: The Recom Power DC DC Converter R24-100B is a 5W, 24V, 100mA DC-DC converter designed to provide a regulated output voltage from a wide input voltage range of 56-135V. It is a highly efficient, low-profile, and cost-effective solution for a variety of applications.

Features:
? Wide input voltage range of 56-135V
? Output voltage of 24V
? Output current of 100mA
? High efficiency of up to 90%
? Low-profile design
? Cost-effective solution
? Over-voltage, over-current, and short-circuit protection

Applications: The Recom Power DC DC Converter R24-100B is suitable for a variety of applications, including industrial automation, medical equipment, telecommunications, and automotive electronics. It can be used to power a variety of devices, such as sensors, actuators, and controllers.
