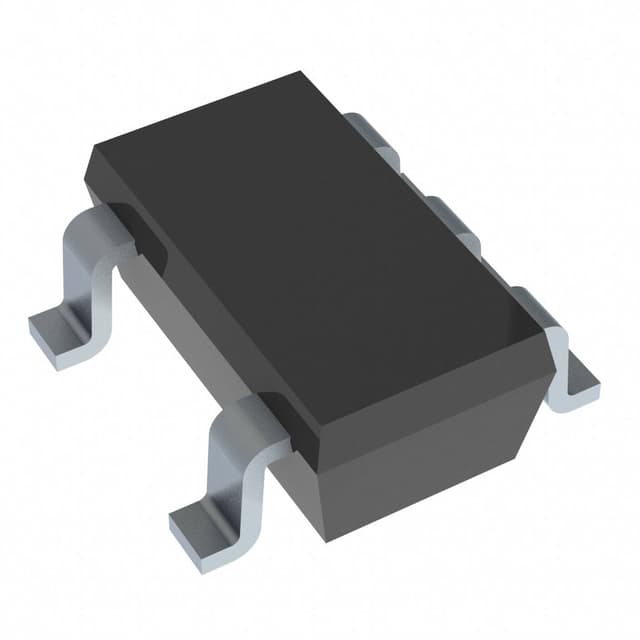

RICOH R1210N221A-TR-FE

Manufacturer No:

R1210N221A-TR-FE

Manufacturer:

RICOH

Package:

SC-74A, SOT-753

Description:

5 Terminals DC DC Voltage Regulator SWITCHING REGULATOR 1 Outputs 100kHz Tape & Reel (TR) 400mA SC-74A, SOT-753

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

R1210N221A-TR-FE information

RICOH R1210N221A-TR-FE technical specifications, attributes, parameters and parts with similar specifications to RICOH R1210N221A-TR-FE.

Type
Parameter

Factory Lead Time
9 Weeks

Mounting Type
Surface Mount

Package / Case
SC-74A, SOT-753

Surface Mount
YES

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

Series
R1210Nxx1x

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
5

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Terminal Pitch
0.95mm

JESD-30 Code
R-PDSO-G5

Function
Step-Up

Number of Outputs
1

Voltage - Input (Max)
8V

Output Voltage
2.2V

Input Voltage-Nom
6.5V

Analog IC - Other Type
SWITCHING REGULATOR

Output Configuration
Positive

Current - Output
400mA

Topology
Boost

Frequency - Switching
100kHz

Control Technique
PULSE WIDTH MODULATION

Synchronous Rectifier
No

Voltage - Output (Max)
2.2V

Length
2.9mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for RICOH R1210N221A-TR-FE.

Datasheets:

ricohelectronicdevicescoltd-r1210n501ctrfe-datasheets-9057.pdf

R1210N221A-TR-FE Overview

For optimal performance, this voltage regulator makes use of the Tape & Reel (TR) package. In this voltage regulator, there are a total of 5 terminations. There is one type of analog IC that this voltage regulator is equipped with, and that is the SWITCHING REGULATOR type. In order to save space, this harley voltage regulator is available in the SC-74A, SOT-753 package. There are 1 outputs configured on this voltage regulator 12v. There are output pins on this DC DC switching regulator that generate Fixed output. Surface Mount-mounting is compatible with this switching regulator. The operating temperature should be kept at -40°C~85°C when the voltage regulator 12v is in operation. This DC-DC switching regulator has a switching frequency of 100kHz. It features maximum design flexibility due to dc to dc voltage regulator's 400mA output current. Voltage regulator has a maximum input voltage of 8V. 260 is essentially indestructible due to DC DC switching regulator's peak reflow temperature. In order to meet the operation requirements,voltage regulator is designed to provide a nominal input voltage of 6.5V. The voltage DC DC switching regulator can produce is 2.2V volts. Based on the maximal adjusting voltage regulator's output voltage of 2.2V, adjusting voltage regulator can be operated easily. As a member of the R1210Nxx1x family of DC/DC regulators, this part is prominent in many specifications.
