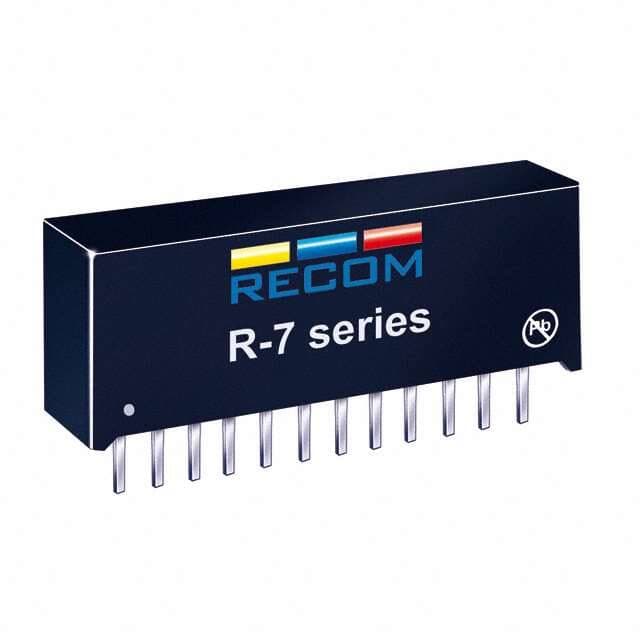

Recom R-746.5P
Recom R-746.5P

Recom R-746.5P

Manufacturer No:

R-746.5P

Manufacturer:

Recom

Package:

12-SIP Module

Description:

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

R-746.5P information

Recom R-746.5P technical specifications, attributes, parameters and parts with similar specifications to Recom R-746.5P.

  • Type
  • Parameter
  • Factory Lead Time
  • 9 Weeks
  • Mount
  • PCB, Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • 12-SIP Module
  • Number of Pins
  • 12
  • Weight
  • 9g
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Tube
  • Series
  • INNOLINE R-7xxx
  • Size / Dimension
  • 1.27Lx0.36W x 0.59 H 32.2mmx9.1mmx15.0mm
  • Feature
  • Remote On/Off, OCP, SCP
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 12
  • ECCN Code
  • EAR99
  • Type
  • Non-Isolated PoL Module
  • Applications
  • ITE (Commercial)
  • Subcategory
  • Other Analog ICs
  • Power Rating
  • 1.4W
  • Max Power Dissipation
  • 26W
  • Technology
  • HYBRID
  • Terminal Position
  • SINGLE
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Terminal Pitch
  • 2.54mm
  • Depth
  • 9.1mm
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Pin Count
  • 12
  • Number of Outputs
  • 1
  • Qualification Status
  • Not Qualified
  • Efficiency
  • 96%
  • Output Voltage
  • 5V
  • Max Output Current
  • 4A
  • Voltage - Output 1
  • 6.5V
  • Voltage - Input (Min)
  • 8.5V
  • Trim/Adjustable Output
  • YES
  • Output Current
  • 4A
  • Output Power
  • 26W
  • Control Features
  • Enable, Active High
  • Max Output Voltage
  • 7.5V
  • Current - Output 1
  • 4A
  • Nominal Input Voltage
  • 24V
  • Min Output Voltage
  • 5V
  • Max Output Power
  • 30W
  • Isolation
  • Non-Isolated
  • Isolation Voltage
  • 4kV
  • Max Input Voltage (DC)
  • 28V

Download datasheets and manufacturer documentation for Recom R-746.5P.

Datasheets:

The Recom Power DC DC Converter R-746.5P is a 4A DC/DC-Converter 'INNOLINE' SIP12 reg; V. It has an input voltage range of 8.5-28V and an output voltage of 6.5V. It has a maximum output current of 4000mA.

Features of the Recom Power DC DC Converter R-746.5P include:

? High efficiency up to 94%
? Low ripple and noise
? Short circuit protection
? Overload protection
? Overvoltage protection
? Thermal shutdown
? Remote On/Off

The Recom Power DC DC Converter R-746.5P is suitable for a wide range of applications, including industrial, medical, automotive, and consumer electronics. It is ideal for powering microcontrollers, FPGAs, ASICs, and other sensitive electronics. It is also suitable for powering LED lighting, motor drives, and other power-hungry applications.
