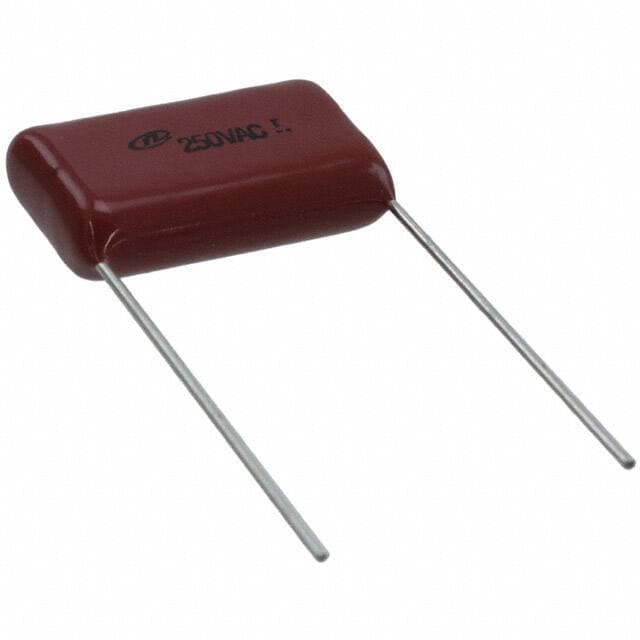

NICHICON QXL2E334KTPT

Manufacturer No:

QXL2E334KTPT

Manufacturer:

NICHICON

Package:

Radial

Description:

QXL 0.33?F Film Capacitor ±10% Radial PC Pins 400V-DC 250V-AC Polyester, Metallized Radial, Through Hole

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

QXL2E334KTPT information

NICHICON QXL2E334KTPT technical specifications, attributes, parameters and parts with similar specifications to NICHICON QXL2E334KTPT.

Type
Parameter

Factory Lead Time
18 Weeks

Mount
Radial, Through Hole

Mounting Type
Through Hole

Package / Case
Radial

Terminal Shape
WIRE

Dielectric Material
Polyester, Metallized

Weight
3.789991g

Operating Temperature
-40°C~105°C

Packaging
Bulk

Series
QXL

Published
2006

Size / Dimension
1.004Lx0.311W 25.50mmx7.90mm

Tolerance
±10%

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
PC Pins

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Applications
High Frequency, Switching

Additional Feature
RATED AC VOLTAGE (V): 250

HTS Code
8532.22.00

Voltage - Rated DC
400V

Depth
7.9mm

Voltage - Rated AC
250V

Lead Pitch
22.5mm

Capacitor Type
FILM CAPACITOR

Dielectric
PET

Lead Spacing
0.886 22.50mm

Lead Diameter
800 ?m

Voltage
250V

Height
16.7mm

Height Seated (Max)
0.717 18.20mm

Length
25.5mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NICHICON QXL2E334KTPT.

QXL2E334KTPT Overview

Its lead spacing is 0.886 22.50mm.Temperatures of -40°C~105°C allow the device to operate.

QXL2E334KTPT Features

QXL2E334KTPT Applications

There are a lot of Nichicon
QXL2E334KTPT applications of film capacitors.

Battery management system
Test and measuring equipment
RF Modules
Mobile communications
Satellite TV
Global positioning systems
Filters
VCO's
Matching networks
Snubbering
