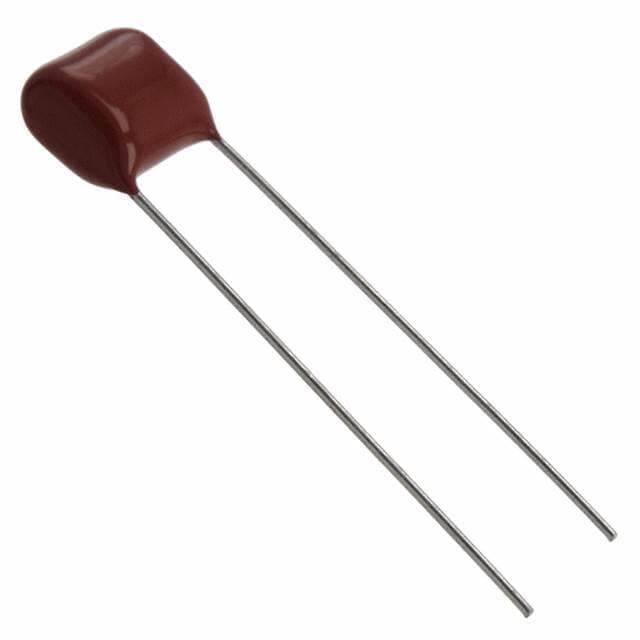

NICHICON QXL2B104KTPT

Manufacturer No:

QXL2B104KTPT

Manufacturer:

NICHICON

Package:

Radial

Description:

QXL 0.1?F Film Capacitor ±10% Radial PC Pins 125V-AC Polyester, Metallized Radial, Through Hole

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

QXL2B104KTPT information

NICHICON QXL2B104KTPT technical specifications, attributes, parameters and parts with similar specifications to NICHICON QXL2B104KTPT.

Type
Parameter

Factory Lead Time
18 Weeks

Mount
Radial, Through Hole

Mounting Type
Through Hole

Package / Case
Radial

Terminal Shape
WIRE

Dielectric Material
Polyester, Metallized

Operating Temperature
-40°C~105°C

Packaging
Bulk

Series
QXL

Published
2006

Size / Dimension
0.433Lx0.268W 11.00mmx6.80mm

Tolerance
±10%

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
PC Pins

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Applications
High Frequency, Switching

Additional Feature
RATED AC VOLTAGE (V): 125

HTS Code
8532.22.00

Capacitance
0.1?F

Voltage - Rated AC
125V

Lead Pitch
7.5mm

Capacitor Type
FILM CAPACITOR

Dielectric
PET

Lead Spacing
0.295 7.50mm

Lead Diameter
600 ?m

Size Code
4327

Voltage
125V

Height
10.4mm

Height Seated (Max)
0.469 11.90mm

Length
11mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for NICHICON QXL2B104KTPT.

Datasheets:

nichicon-qxl2b104ktpt-datasheets-5481.pdf

nichicon-qxl2b104ktpt-datasheets-5482.pdf

QXL2B104KTPT Overview

Lead spacing is 0.295 7.50mm for this electrical device.Devices with a -40°C~105°C temperature capability can be operated.

QXL2B104KTPT Features

QXL2B104KTPT Applications

There are a lot of Nichicon
QXL2B104KTPT applications of film capacitors.

Test and measuring equipment
RF Modules
Mobile communications
Satellite TV
Global positioning systems
Filters
VCO's
Matching networks
Snubbering
Filtering
