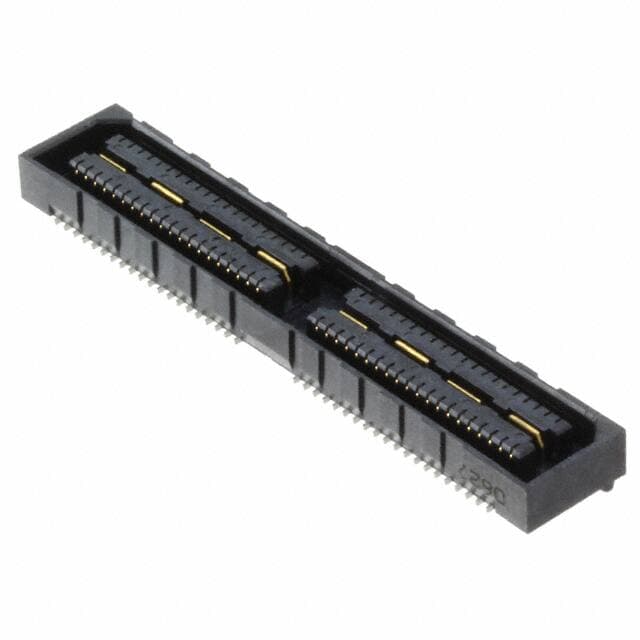

SAMTEC QSE-040-01-C-D-A-K-TR

Manufacturer No:

QSE-040-01-C-D-A-K-TR

Manufacturer:

Package:

Description:

Receptacle, Center Strip Contacts Tape & Reel (TR) 2 Rows 0.031 0.80mm Surface Mount 80 Positions Q Strip® QSE Gold Solder Bronze

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

QSE-040-01-C-D-A-K-TR information

SAMTEC QSE-040-01-C-D-A-K-TR technical specifications, attributes, parameters and parts with similar specifications to SAMTEC QSE-040-01-C-D-A-K-TR.

Type
Parameter

Factory Lead Time
3 Weeks

Contact Material
Bronze

Mounting Type
Surface Mount

Housing Material
Polymer

Packaging
Tape & Reel (TR)

Series
Q Strip® QSE

Published
2010

Feature
Board Guide, Ground Bus (Plane), Pick and Place

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Connector Type
Receptacle, Center Strip Contacts

Number of Positions
80

Max Operating Temperature
125°C

Min Operating Temperature
-55°C

Number of Rows
2

Gender
Female

Pitch
0.031 0.80mm

Orientation
Straight

Depth
7.24mm

Contact Finish
Gold

Max Voltage Rating (AC)
225V

Length
41.27mm

Height Above Board
0.128 3.25mm

Stack Height (Mating)
5mm 8mm 11mm 14mm 16mm 19mm 25mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for SAMTEC QSE-040-01-C-D-A-K-TR.

QSE-040-01-C-D-A-K-TR Overview

A Receptacle, Center Strip Contacts package is included with it.Packaging is performed using a Tape & Reel (TR) case.Its mounting type is Surface Mount.It is part of the Q Strip® QSE Series of products.In operation, Board Guide, Ground Bus (Plane), Pick and Place may be maintained.Whenever it's below 125°C, it's best to use it.The device must operate at a temperature of -55°C at all times.

QSE-040-01-C-D-A-K-TR Features

Q Strip® QSE series
Package / Case: Tape & Reel (TR)
Mounting Type:Surface Mount
Max Operating temperature at -55°C

QSE-040-01-C-D-A-K-TR Applications

There are a lot of Samtec Inc.
QSE-040-01-C-D-A-K-TR Rectangular Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
