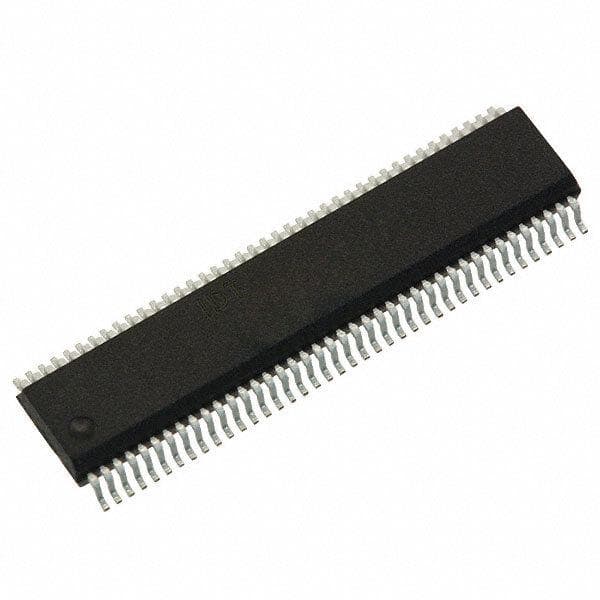

Renesas QS34XVH245Q3G

Manufacturer No:

QS34XVH245Q3G

Manufacturer:

Renesas

Package:

Description:

80 Terminations 80 Pin Signal switch 4 Functions Min 2.3V V Max 3.6V V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

QS34XVH245Q3G information

Renesas QS34XVH245Q3G technical specifications, attributes, parameters and parts with similar specifications to Renesas QS34XVH245Q3G.

Type
Parameter

Factory Lead Time
7 Weeks

Contact Plating
Tin

Mount
Surface Mount

Number of Pins
80

Published
2012

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
80

ECCN Code
EAR99

Resistance
9Ohm

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Bus Driver/Transceivers

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
4

Supply Voltage
2.5V

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
80

Qualification Status
Not Qualified

Temperature Grade
INDUSTRIAL

Max Supply Voltage
3.6V

Min Supply Voltage
2.3V

Number of Ports
2

Nominal Supply Current
8mA

Number of Bits
32

Propagation Delay
200 ps

Quiescent Current
12mA

Turn On Delay Time
8 ns

Family
CBT/FST/QS/5C/B

Output Characteristics
3-STATE

Supply Type
Single

Output Polarity
TRUE

Logic IC Type
BUS DRIVER

Low Level Output Current
120mA

Independent Circuits
4

Length
20.5mm

Height Seated (Max)
2mm

Width
3.81mm

Thickness
1.6mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas QS34XVH245Q3G.

QS34XVH245Q3G Overview

As parts of its basic configuration, 80 terminations are desgined.The voltage supplied for multiplexer's system is 2.5V.multiplexer's systemThere are 80 component pins in this turn signal switch.It employs GULL WING as the point at which conductors come to an end.Single is employed as its supply type.It is configured with 80 pins.It is mounted in the way of Surface Mount.The logic switch is included into the family of CBT/FST/QS/5C/B.There are 32 bits signal multiplexer provides.The power supply of 3.3V is provided for mux switch's normal operation.The digital switch ic is an electronic part classified into Bus Driver/Transceivers.Not being affected by the external factors, consumes 12mA current of multiplexer ic.2 ports are used for some other peripheral signal switchings to plug in.It operates with a resistance of 9Ohm.It is acceptable for this signal switch to operate at the maximal temperature of 85°C.The minimal operating temperature of the multiplexer should be maintained at -40°C.The signal switches is specified to operate at the maximum supply voltage of 3.6V in compliance with the applicable device specification.The digital swith is specified to operate at the minimum supply voltage of 2.3V in compliance with the applicable device specification.It employs BUS DRIVER as its logic IC.

QS34XVH245Q3G Features

Adopting a supply type of Single
Power supplies of 3.3V
BUS DRIVER as the logic IC

QS34XVH245Q3G Applications

There are a lot of Integrated Device Technology (IDT)
QS34XVH245Q3G Signal Switches / Multiplexers / Decoders applications.

Communication system
Telephone network
Computer memory
Transmission from the computer system of a satellite
Time division multiplexing system
Frequency multiplexing system
A/D converters
D/A converters
Implementing boolean functions with multiple variables
Data collection system
