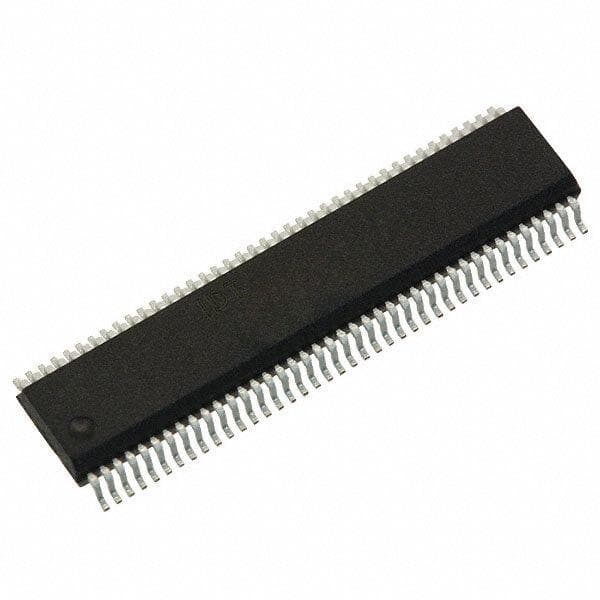

Renesas QS34X383Q3G
Manufacturer No:
QS34X383Q3G
Manufacturer:
Package:
Description:
80 Terminations 80 Pin Signal switch 4 Functions Min 4.75V V Max 5.25V V
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
QS34X383Q3G information
Renesas QS34X383Q3G technical specifications, attributes, parameters and parts with similar specifications to Renesas QS34X383Q3G.
- Type
- Parameter
- Factory Lead Time
- 7 Weeks
- Mount
- Surface Mount
- Number of Pins
- 80
- Published
- 2009
- JESD-609 Code
- e3
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 80
- ECCN Code
- EAR99
- Resistance
- 17Ohm
- Terminal Finish
- MATTE TIN
- Max Operating Temperature
- 85°C
- Min Operating Temperature
- -40°C
- Subcategory
- Other Logic ICs
- Technology
- CMOS
- Terminal Position
- DUAL
- Terminal Form
- GULL WING
- Peak Reflow Temperature (Cel)
- 260
- Number of Functions
- 4
- Supply Voltage
- 5V
- Time@Peak Reflow Temperature-Max (s)
- NOT SPECIFIED
- Pin Count
- 80
- Qualification Status
- Not Qualified
- Temperature Grade
- INDUSTRIAL
- Max Supply Voltage
- 5.25V
- Min Supply Voltage
- 4.75V
- Power Dissipation-Max
- 1.4W
- Number of Ports
- 4
- Nominal Supply Current
- 6mA
- Number of Bits
- 4
- Propagation Delay
- 250 ps
- Turn On Delay Time
- 6.5 ns
- Family
- CBT/FST/QS/5C/B
- Output Characteristics
- 3-STATE
- Supply Type
- Single
- Turn-Off Delay Time
- 5.5 ns
- Output Polarity
- TRUE
- Logic IC Type
- BUS EXCHANGER
- High Level Output Current
- -120mA
- Low Level Output Current
- 120mA
- Independent Circuits
- 4
- Length
- 20.5mm
- Height Seated (Max)
- 1.7526mm
- Width
- 3.81mm
- Thickness
- 1.6mm
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for Renesas QS34X383Q3G.
QS34X383Q3G Overview
It is designed with 80 terminations as part of its basic configuration.For multiplexer's system, a voltage of 5V is supplied.This turn signal switch consists of 80 component pins.Using the point GULL WING as an end point of conductors, it is used to determine the terminus of a conductor.In this case, the supply type is Single.A configuration of 80 pins is used.The mounting point is Surface Mount.I would like to refer to the logic switch as a member of the CBT/FST/QS/5C/B family.As a result, signal multiplexer provides a total of 4 bits.During mux switch's normal operation, 5V is provided with a power supply.This is an the digital switch ic that is classified as Other Logic ICs.A resistance of 4 is used to operate the signal switching.The resistance of the signal switching is 17Ohm.Signal switch operation at 85°C temperature is acceptable.It is recommended that the minimal operating temperature of the multiplexer be maintained at -40°C.Upon compliance with the applicable device specifications, the device will operate at the maximum supply voltage of 5.25V.Device specifications require that the minimum supply voltage is 4.75V.It uses the logic IC BUS EXCHANGER as its core logic unit.
QS34X383Q3G Features
Adopting a supply type of Single
Power supplies of 5V
BUS EXCHANGER as the logic IC
QS34X383Q3G Applications
There are a lot of Integrated Device Technology (IDT)
QS34X383Q3G Signal Switches / Multiplexers / Decoders applications.
- D/A converters
- Implementing boolean functions with multiple variables
- Data collection system
- Audio transmission
- Video transmission
- Image transmission
- Recording transmission
- Combinational circuit
- Logic gates for other digital devices
- Signal router
