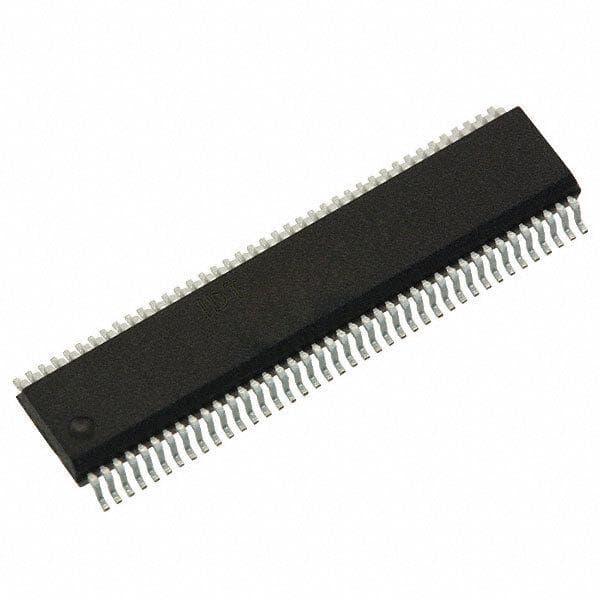

Renesas QS34X245Q3G8
Manufacturer No:
QS34X245Q3G8
Manufacturer:
Package:
Description:
80 Terminations 80 Pin Signal switch 4 Functions Min 4.75V V Max 5.25V V
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
QS34X245Q3G8 information
Renesas QS34X245Q3G8 technical specifications, attributes, parameters and parts with similar specifications to Renesas QS34X245Q3G8.
- Type
- Parameter
- Factory Lead Time
- 7 Weeks
- Contact Plating
- Tin
- Mount
- Surface Mount
- Number of Pins
- 80
- Published
- 2012
- JESD-609 Code
- e3
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 80
- ECCN Code
- EAR99
- Resistance
- 15Ohm
- Max Operating Temperature
- 85°C
- Min Operating Temperature
- -40°C
- Subcategory
- Bus Driver/Transceivers
- Technology
- CMOS
- Terminal Position
- DUAL
- Terminal Form
- GULL WING
- Peak Reflow Temperature (Cel)
- 260
- Number of Functions
- 4
- Supply Voltage
- 5V
- Time@Peak Reflow Temperature-Max (s)
- NOT SPECIFIED
- Pin Count
- 80
- Qualification Status
- Not Qualified
- Number of Elements
- 4
- Power Supplies
- 5V
- Temperature Grade
- INDUSTRIAL
- Max Supply Voltage
- 5.25V
- Min Supply Voltage
- 4.75V
- Power Dissipation-Max
- 1.4W
- Number of Ports
- 2
- Nominal Supply Current
- 12?A
- Number of Bits
- 32
- Propagation Delay
- 250 ps
- Quiescent Current
- 12?A
- Turn On Delay Time
- 5.6 ns
- Family
- CBT/FST/QS/5C/B
- Output Characteristics
- 3-STATE
- Output Polarity
- TRUE
- Logic IC Type
- BUS DRIVER
- High Level Output Current
- -120mA
- Low Level Output Current
- 120mA
- Length
- 20.5mm
- Height Seated (Max)
- 1.7526mm
- Width
- 3.81mm
- Thickness
- 1.6mm
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for Renesas QS34X245Q3G8.
QS34X245Q3G8 Overview
As parts of its basic configuration, 80 terminations are desgined.The voltage supplied for multiplexer's system is 5V.multiplexer's systemThere are 80 component pins in this turn signal switch.It employs GULL WING as the point at which conductors come to an end.It is configured with 80 pins.It is mounted in the way of Surface Mount.The logic switch is included into the family of CBT/FST/QS/5C/B.There are 32 bits signal multiplexer provides.The power supply of 5V is provided for mux switch's normal operation.The digital switch ic is an electronic part classified into Bus Driver/Transceivers.Not being affected by the external factors, consumes 12?A current of multiplexer ic.Reliable performance of the multiplexers can be achieved when a supply voltage of 5V is provided.2 ports are used for some other peripheral signal switchings to plug in.It operates with a resistance of 15Ohm.It is acceptable for this signal switch to operate at the maximal temperature of 85°C.The minimal operating temperature of the multiplexer should be maintained at -40°C.The signal switches is specified to operate at the maximum supply voltage of 5.25V in compliance with the applicable device specification.The digital swith is specified to operate at the minimum supply voltage of 4.75V in compliance with the applicable device specification.There are 4 elements used for the mux switch configuration.It employs BUS DRIVER as its logic IC.
QS34X245Q3G8 Features
Power supplies of 5V
Operating with the supply voltage of 5V
BUS DRIVER as the logic IC
QS34X245Q3G8 Applications
There are a lot of Integrated Device Technology (IDT)
QS34X245Q3G8 Signal Switches / Multiplexers / Decoders applications.
- Communication system
- Telephone network
- Computer memory
- Transmission from the computer system of a satellite
- Time division multiplexing system
- Frequency multiplexing system
- A/D converters
- D/A converters
- Implementing boolean functions with multiple variables
- Data collection system
