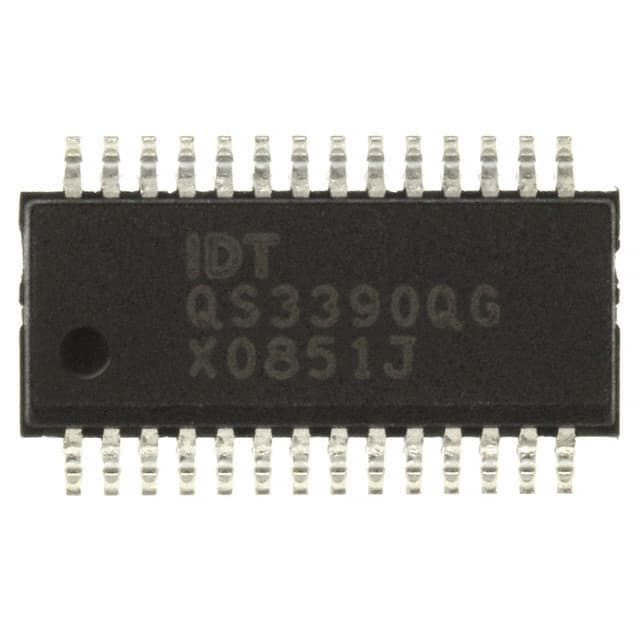

Renesas QS3390QG8

Manufacturer No:

QS3390QG8

Manufacturer:

Renesas

Package:

QSOP

Description:

28 Terminations 28 Pin Signal switch 1 Functions Min 4.75V V Max 5.25V V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

QS3390QG8 information

Renesas QS3390QG8 technical specifications, attributes, parameters and parts with similar specifications to Renesas QS3390QG8.

Type
Parameter

Factory Lead Time
7 Weeks

Contact Plating
Tin

Mount
Surface Mount

Package / Case
QSOP

Number of Pins
28

Packaging
Tape & Reel

Published
2009

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
28

ECCN Code
EAR99

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.635mm

Pin Count
28

Operating Supply Voltage
5V

Power Supplies
5V

Max Supply Voltage
5.25V

Min Supply Voltage
4.75V

Power Dissipation
500mW

Propagation Delay
250 ps

Quiescent Current
3μA

Turn On Delay Time
6.5 ns

Family
3390

Logic Function
Demultiplexer, Multiplexer

Output Characteristics
3-STATE

Supply Type
Single

Output Polarity
TRUE

High Level Output Current
-120mA

Low Level Output Current
120mA

Number of Input Lines
16

Independent Circuits
1

Number of Output Lines
8

Length
9.9mm

Width
3.8mm

Thickness
1.47mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas QS3390QG8.

Datasheets:

integrateddevicetechnology-qs3390qg8-datasheets-3440.pdf

integrateddevicetechnology-qs3390qg8-datasheets-4922.pdf

QS3390QG8 Overview

It is included in the QSOP in order to save board space.As a result, it is packaged in the way of Tape & Reel.Among its basic features are 28 terminations.The multiplexer's system is powered by 5V volts.A component pin count of 28 can be found on this turn signal switch.GULL WING is used as the point at which the conductors come to an end as part of this formula.In this case, Single is employed as the supply type.There are 28 pins on it.The mount is in Surface Mount.Among the family of 3390 the logic switch is a member.In order for 5V to operate normally, a power supply is provided.Without the influence of external factors, it consumes 3μA current of multiplexer ic.Supply voltages of 5V can provide reliable performance of the multiplexers.It is possible to accept voltage levels through 16 input lines of multiplexers.Signal source consists of 8 output lines.Signal switchs at temperatures up to 85°C are acceptable.It is recommended that the minimum operating temperature of the multiplexer be kept at -40°C.The relevant device specification specifies a maximum supply voltage of 5.25V for the signal switches.A minimum supply voltage of 4.75V is required to operate the digital swith.

QS3390QG8 Features

Supplied in the QSOP package
Adopting a supply type of Single
Power supplies of 5V
Operating with the supply voltage of 5V
16 input lines
8 output lines

QS3390QG8 Applications

There are a lot of Integrated Device Technology (IDT)
QS3390QG8 Signal Switches / Multiplexers / Decoders applications.

A/D converters
D/A converters
Implementing boolean functions with multiple variables
Data collection system
Audio transmission
Video transmission
Image transmission
Recording transmission
Combinational circuit
Logic gates for other digital devices
