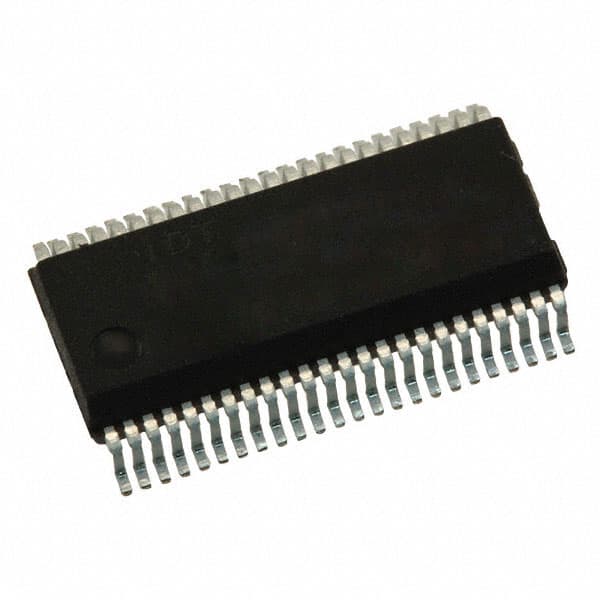

Renesas QS32X861Q1G

Manufacturer No:

QS32X861Q1G

Manufacturer:

Renesas

Package:

QSOP

Description:

48 Terminations 48 Pin Signal switch 2 Functions Min 4.75V V Max 5.25V V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

QS32X861Q1G information

Renesas QS32X861Q1G technical specifications, attributes, parameters and parts with similar specifications to Renesas QS32X861Q1G.

Type
Parameter

Factory Lead Time
7 Weeks

Contact Plating
Tin

Mount
Surface Mount

Package / Case
QSOP

Number of Pins
48

Power Dissipation (Max)
500mW

Published
2009

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
48

ECCN Code
EAR99

Resistance
15Ohm

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
2

Supply Voltage
5V

Terminal Pitch
0.4mm

Pin Count
48

Operating Supply Voltage
5V

Temperature Grade
INDUSTRIAL

Max Supply Voltage
5.25V

Min Supply Voltage
4.75V

Number of Ports
2

Nominal Supply Current
6μA

Number of Bits
20

Propagation Delay
250 ps

Quiescent Current
6μA

Turn On Delay Time
6.5 ns

Family
CBT/FST/QS/5C/B

Output Characteristics
3-STATE

Supply Type
Single

Output Polarity
TRUE

Logic IC Type
BUS DRIVER

High Level Output Current
-120mA

Low Level Output Current
120mA

Independent Circuits
2

Length
9.9mm

Width
3.8mm

Thickness
1.6mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas QS32X861Q1G.

Datasheets:

integrateddevicetechnology-qs32x861q1g-datasheets-8543.pdf

integrateddevicetechnology-qs32x861q1g-datasheets-4369.pdf

QS32X861Q1G Overview

Due to the lack of space on the board, digital switch is provided in the QSOP.There are 48 terminations included in its basic configuration.In this case, 5V is the voltage supplied to the multiplexer's system.Signal switch has 48 component pins.GULL WING represents the end of conductors.There is a supply type of Single employed as part of this supply.This multiplexer ic has 48 pins configured.As you can see, it is mounted in the direction of Surface Mount.The logic switch is a member of the CBT/FST/QS/5C/B family.In this signal multiplexer, there are 20 bits that are provided.In order to maintain mux switch's normal operation, power is provided to 5V.There are no external influences on this multiplexer ic, so it consumes 6μA current.Using a supply voltage of 5V can result in reliable performance of the multiplexers.This signal switching operates at a resistance of 2.As far as the resistance is concerned, it operates with 15Ohm.The signal switch can operate at a maximum temperature of 85°C.Maintaining a minimum operating temperature of the multiplexer of -40°C is recommended.The device is specified to operate at a maximum supply voltage of 5.25V in accordance with the applicable device specification.In compliance with the applicable device specification, the digital swith operates at a minimum supply voltage of 4.75V.In order to implement its logic, it makes use of IC BUS DRIVER.

QS32X861Q1G Features

Supplied in the QSOP package
Adopting a supply type of Single
Power supplies of 5V
Operating with the supply voltage of 5V
BUS DRIVER as the logic IC

QS32X861Q1G Applications

There are a lot of Integrated Device Technology (IDT)
QS32X861Q1G Signal Switches / Multiplexers / Decoders applications.

Implementing boolean functions with multiple variables
Data collection system
Audio transmission
Video transmission
Image transmission
Recording transmission
Combinational circuit
Logic gates for other digital devices
Signal router
Data communication
