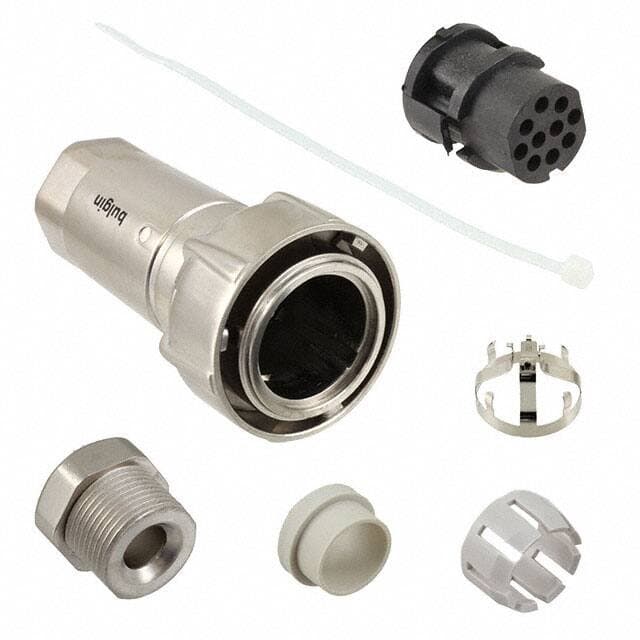

Bulgin PXM7010/10S/CR/1315/SN
Bulgin PXM7010/10S/CR/1315/SN

Bulgin PXM7010/10S/CR/1315/SN

Manufacturer No:

PXM7010/10S/CR/1315/SN

Manufacturer:

Bulgin

Package:

Metal

Description:

Plug Housing Zinc Alloy Free Hanging (In-Line) Nickel 10 (Power) Positions Bulk Bayonet Lock Shielded Contacts Not Included Buccaneer® 7000

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PXM7010/10S/CR/1315/SN information

Bulgin PXM7010/10S/CR/1315/SN technical specifications, attributes, parameters and parts with similar specifications to Bulgin PXM7010/10S/CR/1315/SN.

  • Type
  • Parameter
  • Factory Lead Time
  • 20 Weeks
  • Contact Material
  • Brass
  • Mount
  • Cable
  • Mounting Type
  • Free Hanging (In-Line)
  • Package / Case
  • Metal
  • Contact Shape
  • Circular
  • Shell Material
  • Zinc Alloy
  • Body Material
  • Zinc
  • Operating Temperature
  • -40°C~120°C
  • Packaging
  • Bulk
  • Series
  • Buccaneer® 7000
  • Published
  • 2013
  • Feature
  • Backshell, Coupling Nut
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Crimp
  • ECCN Code
  • EAR99
  • Connector Type
  • Plug Housing
  • Type
  • For Female Sockets
  • Number of Positions
  • 10 (Power)
  • Gender
  • Male
  • Voltage - Rated
  • 600V
  • HTS Code
  • 8536.69.40.20
  • Contact Finish - Mating
  • NOT SPECIFIED
  • Contact Type
  • Crimp and Solder Cup
  • Orientation
  • Keyed
  • Shielding
  • Shielded
  • Ingress Protection
  • IP66/68/69K - Dust Tight, Water Resistant, Waterproof
  • Current Rating
  • 10A
  • Shell Finish
  • Nickel
  • Number of Contacts
  • 10
  • Contact Gender
  • Female
  • Housing Color
  • Silver
  • Note
  • Contacts Not Included
  • Wire/Cable Gauge
  • -18 AWG
  • REACH SVHC
  • No SVHC
  • RoHS Status
  • RoHS Compliant
  • Ratings
  • IP66

Download datasheets and manufacturer documentation for Bulgin PXM7010/10S/CR/1315/SN.

Datasheets:

Environmental Information:

PXM7010/10S/CR/1315/SN Overview


Currently, it is packaged in Plug Housing.The mounting type of the device is Free Hanging (In-Line).A Bulk case is used to package the product.A product of the Buccaneer® 7000 Series, it belongs to the range of products of that series.In addition to its benefits, this part shares a number of advantages with other For Female Sockets products.The operating system can be configured to maintain the value of Backshell, Coupling Nut when it operates.Using a Cable socket is required in order to mount the item.Metal means there is a device enclosed in the packaging.

PXM7010/10S/CR/1315/SN Features


Buccaneer® 7000 series


PXM7010/10S/CR/1315/SN Applications


There are a lot of Bulgin
PXM7010/10S/CR/1315/SN Circular Connectors applications.


  • Rotary encoder
  • Displaying
  • Transducer
  • Microcontrollers.
  • Digital Storage Oscilloscope
  • Scientific instruments.
  • Music reproduction technology
  • Communication Systems
  • Data Acquisition Systems
  • Handheld Terminal Interface
