NXP PXAG30KFA,512

Manufacturer No:

PXAG30KFA,512

Manufacturer:

NXP

Package:

44-LCC (J-Lead)

Description:

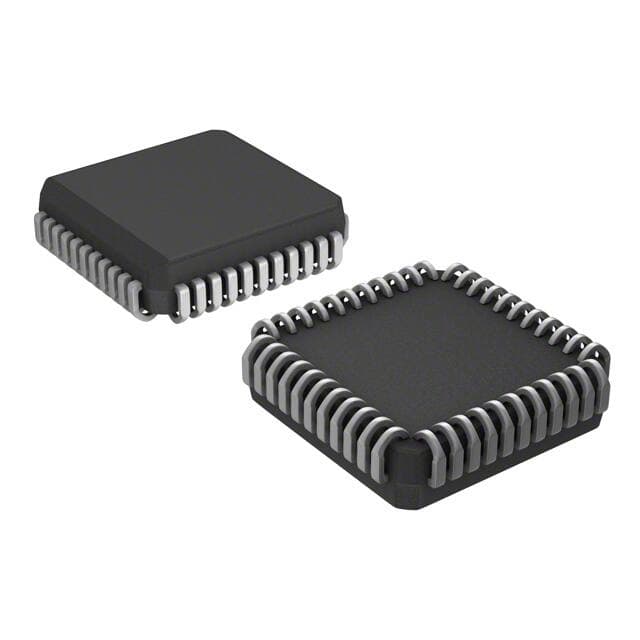

ROMless 16-Bit Microcontroller XA Series PXAG30 3V 44-LCC (J-Lead)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PXAG30KFA,512 information

NXP PXAG30KFA,512 technical specifications, attributes, parameters and parts with similar specifications to NXP PXAG30KFA,512.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
44-LCC (J-Lead)

Surface Mount
YES

Operating Temperature
-40°C~85°C TA

Packaging
Tube

Series
XA

Published
2002

JESD-609 Code
e3

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
44

Terminal Finish
Tin (Sn)

Additional Feature
CAN ALSO OPERATE AT 2.7V MIN SUPPLY

HTS Code
8542.31.00.01

Subcategory
Microcontrollers

Technology
CMOS

Terminal Position
QUAD

Terminal Form
J BEND

Peak Reflow Temperature (Cel)
245

Supply Voltage
3V

Terminal Pitch
1.27mm

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
PXAG30

Pin Count
44

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
5.5V

Power Supplies
3/5V

Supply Voltage-Min (Vsup)
2.85V

Oscillator Type
External

Number of I/O
32

Speed
30MHz

RAM Size
512 x 8

Voltage - Supply (Vcc/Vdd)
2.7V~5.5V

uPs/uCs/Peripheral ICs Type
MICROCONTROLLER

Peripherals
PWM, WDT

Clock Frequency
30MHz

Program Memory Type
ROMless

Core Size
16-Bit

Connectivity
UART/USART

Supply Current-Max
45mA

Bit Size
16

Has ADC
NO

DMA Channels
NO

PWM Channels
YES

DAC Channels
NO

Address Bus Width
20

ROM (words)
0

Download datasheets and manufacturer documentation for NXP PXAG30KFA,512.

Datasheets:

nxpusainc-pxag30kfa529-datasheets-0571.pdf

PXAG30KFA,512 Overview

In a 44-LCC (J-Lead) package, the MCU is available. 32 I/Os are available. The Microcontroller has a mounting type of Surface Mount, which indicates that it is mounted conveniently. The 16-Bit core is the core of the MCU. There is a ROMless type of memory for its program. There is a temperature range of -40°C~85°C TA that is operated by this Microcontroller. XA series components make up this electrical component. This device falls under the MICROCONTROLLER uPs/uCs/Peripheral ICs category. 44 is the number of terminations on the IC chip that are present. This part works in a 16-bit manner. There is a 3V volt supply output on the chip. DMA channels number NO. The base part number PXAG30 can be used to find alternatives. The device works in YES PWM channels. There are 44 pins on it. In this device, there is a XA CPU embedded within it. A 30MHz-clock frequency is used to operate it. I would like to mention a few additional features such as CAN ALSO OPERATE AT 2.7V MIN SUPPLY in order to name a few.

PXAG30KFA,512 Features

44-LCC (J-Lead) package
Mounting type of Surface Mount
Microcontrollers subcategory
