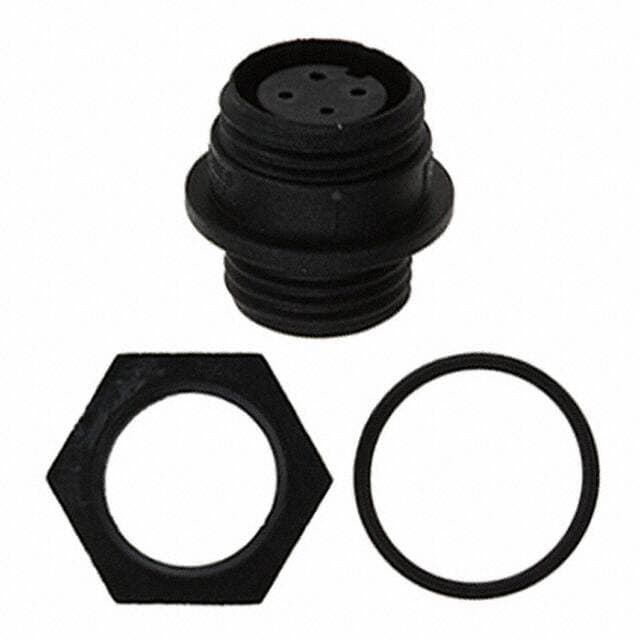

Bulgin PX0412/04S
Bulgin PX0412/04S

Bulgin PX0412/04S

Manufacturer No:

PX0412/04S

Manufacturer:

Bulgin

Package:

Description:

Receptacle Housing Polyamide (PA), Nylon Panel Mount 4 (Power) Positions Bulk Threaded Unshielded Contacts Not Included Buccaneer® 400

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PX0412/04S information

Bulgin PX0412/04S technical specifications, attributes, parameters and parts with similar specifications to Bulgin PX0412/04S.

  • Type
  • Parameter
  • Factory Lead Time
  • 20 Weeks
  • Contact Material
  • CuZn, Gold
  • Contact Plating
  • Gold
  • Mount
  • Bulkhead, Jam Nut, Panel, Rear Side Nut
  • Mounting Type
  • Panel Mount
  • Mounting Feature
  • Bulkhead - Rear Side Nut
  • Number of Pins
  • 4
  • Contact Shape
  • Circular
  • Shell Material
  • Polyamide (PA), Nylon
  • Housing Material
  • Polyamide
  • Body Material
  • Nylon, Polyamide
  • Operating Temperature
  • -40°C~80°C
  • Packaging
  • Bulk
  • Series
  • Buccaneer® 400
  • Published
  • 2002
  • Feature
  • UV Resistant
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • Not Applicable
  • Termination
  • Crimp
  • Connector Type
  • Receptacle Housing
  • Type
  • For Female Sockets
  • Number of Positions
  • 4 (Power)
  • Gender
  • Receptacle
  • Fastening Type
  • Threaded
  • Voltage - Rated DC
  • 125V
  • Contact Type
  • Crimp and Solder Cup
  • Option
  • GENERAL PURPOSE
  • Total Number of Contacts
  • 4
  • Orientation
  • Keyed
  • Shielding
  • Unshielded
  • Ingress Protection
  • IP68 - Dust Tight, Waterproof
  • Depth
  • 22mm
  • Current Rating
  • 5A
  • Reference Standard
  • CSA; UL
  • Voltage - Rated AC
  • 125V
  • Approval Agency
  • CSA, UL, VDE
  • Mating Information
  • MULTIPLE MATING PARTS AVAILABLE
  • Contact Gender
  • Female
  • Housing Color
  • Black
  • Contact Resistance
  • 5mOhm
  • Insulation Resistance
  • 10MOhm
  • Note
  • Contacts Not Included
  • Max Current Rating
  • 5A
  • Number of Ports
  • 1
  • Max Voltage Rating (DC)
  • 125.125kV
  • Length
  • 19.9mm

Download datasheets and manufacturer documentation for Bulgin PX0412/04S.

Datasheets:

Environmental Information:

PX0412/04S Overview


Packaging is in the form of Receptacle Housing.This device has a Panel Mount mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Buccaneer® 400 Series.Many of the features of this part can also be found in other For Female Sockets products.In operation, UV Resistant can be maintained as long as UV Resistant is unchanged.A Bulkhead, Jam Nut, Panel, Rear Side Nut socket is required for the mounting of this part.There are 4 pins on the device.Other features include STANDARD: VDE, to name just a few.A variety of tasks can be performed using its 1 ports.

PX0412/04S Features


Buccaneer® 400 series


PX0412/04S Applications


There are a lot of Bulgin
PX0412/04S Circular Connectors applications.


  • Scientific instruments
  • Rotary encoder
  • Displaying
  • Transducer
  • Microcontrollers.
  • Digital Storage Oscilloscope
  • Scientific instruments.
  • Music reproduction technology
  • Communication Systems
  • Data Acquisition Systems
