Manufacturer No:

PTC36SAGN

Manufacturer:

Sullins Connector Solutions

Package:

Description:

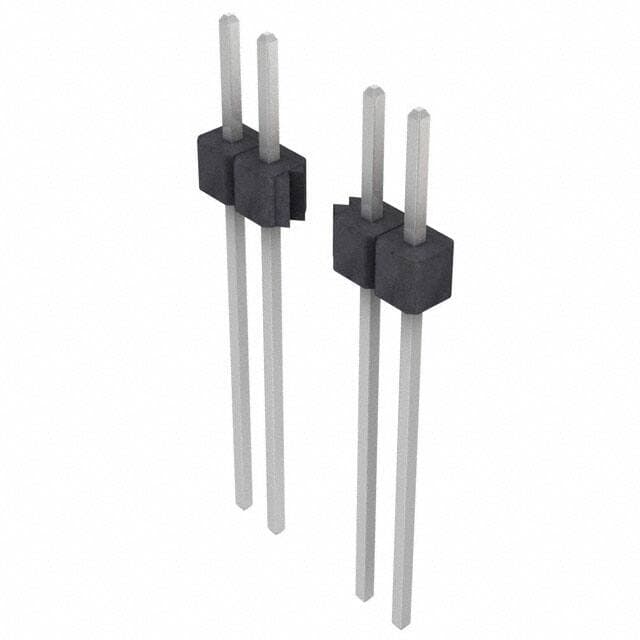

1-Row Header Solder Copper Alloy Bulk Through Hole Tin Thermoplastic, Polyester 36-Position Board to Board or Cable 0.100 2.54mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PTC36SAGN information

Sullins Connector Solutions PTC36SAGN technical specifications, attributes, parameters and parts with similar specifications to Sullins Connector Solutions PTC36SAGN.

  • Type
  • Parameter
  • Contact Material
  • Copper Alloy
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Contact Shape
  • Square
  • Insulation Material
  • Thermoplastic, Polyester
  • Packaging
  • Bulk
  • Published
  • 2012
  • JESD-609 Code
  • e0
  • Pbfree Code
  • no
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • Not Applicable
  • Termination
  • Solder
  • ECCN Code
  • EAR99
  • Connector Type
  • Header
  • Number of Positions
  • 36
  • Number of Rows
  • 1
  • Gender
  • Male
  • Fastening Type
  • Push-Pull
  • Contact Finish - Mating
  • Tin
  • Contact Type
  • Male Pin
  • Current Rating (Amps)
  • 3A
  • Terminal Pitch
  • 2.54mm
  • Insulation Height
  • 0.100 2.54mm
  • Style
  • Board to Board or Cable
  • Pitch - Mating
  • 0.100 2.54mm
  • Insulation Color
  • Black
  • Number of Conductors
  • ONE
  • Reference Standard
  • UL, CSA
  • Reliability
  • COMMERCIAL
  • Contact Length - Post
  • 0.720 18.29mm
  • Shrouding
  • Unshrouded
  • Number Of PCB Rows
  • 1
  • Contact Length - Mating
  • 0.230 5.84mm
  • PCB Contact Pattern
  • RECTANGULAR
  • Operating Temperature (Min)
  • -65°C
  • Overall Contact Length
  • 1.050 26.67mm
  • Contact Resistance
  • 30mOhm
  • Insulation Resistance
  • 5000000000Ohm
  • Dielectric Withstanding Voltage
  • 600VDC V
  • Contact Finish Thickness - Mating
  • 100.0?in 2.54?m
  • Contact Finish Thickness - Post
  • 100.0?in 2.54?m
  • Material Flammability Rating
  • UL94 V-0
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Sullins Connector Solutions PTC36SAGN.

Datasheets:

Environmental Information:

PTC36SAGN Overview


The packaging contains Header.There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.There is a Through Hole mount on the part.
