CUI PP3-002AH
CUI PP3-002AH

CUI PP3-002AH

Manufacturer No:

PP3-002AH

Manufacturer:

CUI

Package:

Description:

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PP3-002AH information

CUI PP3-002AH technical specifications, attributes, parameters and parts with similar specifications to CUI PP3-002AH.

  • Type
  • Parameter
  • Factory Lead Time
  • 13 Weeks
  • Contact Material
  • Brass, Phosphor Bronze
  • Contact Plating
  • Nickel
  • Mount
  • Free Hanging
  • Mounting Type
  • Free Hanging (In-Line)
  • Housing Material
  • Thermoplastic
  • Body Material
  • Brass
  • Contact Material - Plating
  • Nickel
  • Operating Temperature
  • -25°C~70°C
  • Packaging
  • Bulk
  • Published
  • 2011
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder Eyelet(s)
  • Connector Type
  • Plug
  • Max Operating Temperature
  • 70°C
  • Min Operating Temperature
  • -25°C
  • Color
  • Black
  • Gender
  • Female
  • Voltage - Rated
  • 16VDC
  • Current Rating (Amps)
  • 8A
  • Shielding
  • Unshielded
  • Current Rating
  • 8A
  • Insulation Color
  • Black
  • Contact Gender
  • Female
  • Housing Color
  • Black
  • Insulation Resistance
  • 100MOhm
  • Number of Positions/Contacts
  • 2 Conductors, 2 Contacts
  • Includes
  • 2 pcs - 1 Connector, 1 Handle
  • Internal Switch(s)
  • Does Not Contain Switch
  • Body Color
  • Silver, Black
  • Industry Recognized Mating Diameter
  • 2.10mm ID (0.083), 5.50mm OD (0.217)
  • Actual Diameter
  • 0.083 (2.10mm ID), 0.217 (5.50mm OD)
  • Mating Length/Depth
  • 0.551 14.00mm
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for CUI PP3-002AH.

Datasheets:

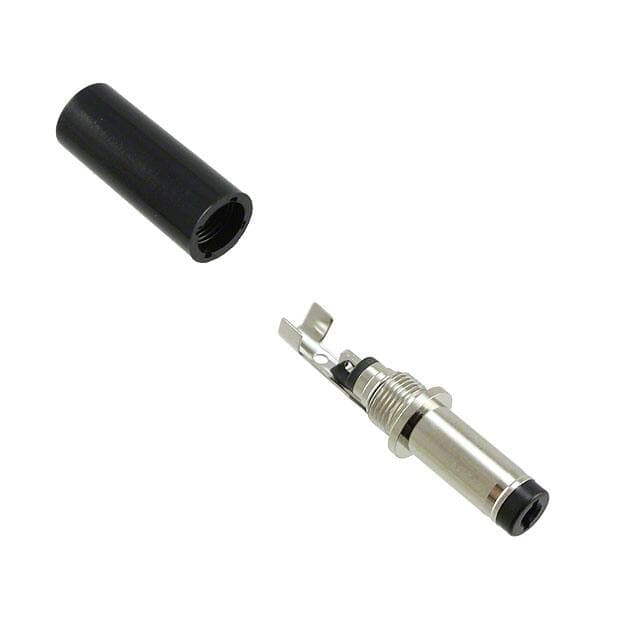

Description: The CUI Devices Barrel - Power Connectors PP3-002AH is a 2.1 x 5.5mm solder power plug connector. It is designed to provide a secure connection between power sources and devices.

Features:
- 2.1 x 5.5mm size
- Solder connection
- Rated for up to 10A and 250V
- Nickel-plated brass construction
- UL, CSA, and VDE approved

Applications: The CUI Devices Barrel - Power Connectors PP3-002AH is suitable for a wide range of applications, including consumer electronics, industrial equipment, and medical devices. It is commonly used to connect power sources to devices such as computers, printers, and other electronic equipment.
