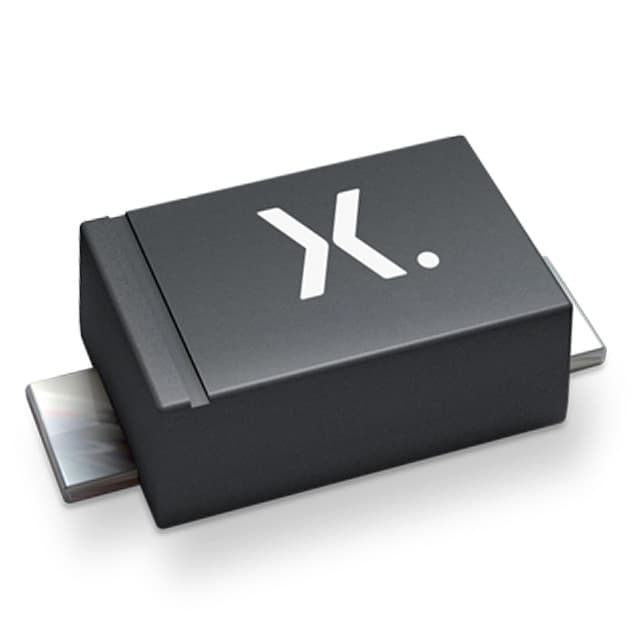

Nexperia PMEG4020ER,115

Manufacturer No:

PMEG4020ER,115

Manufacturer:

Nexperia

Package:

SOD-123W

Description:

Schottky Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 490mV @ 2A 150°C Max 100μA @ 40V 2-Termination Tape & Reel (TR) SOD-123W Surface Mount

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PMEG4020ER,115 information

Nexperia PMEG4020ER,115 technical specifications, attributes, parameters and parts with similar specifications to Nexperia PMEG4020ER,115.

Type
Parameter

Factory Lead Time
4 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
SOD-123W

Number of Pins
2

Diode Element Material
SILICON

Number of Elements
1

Power Dissipation (Max)
0.57W

Packaging
Tape & Reel (TR)

Published
2009

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

ECCN Code
EAR99

Terminal Finish
Tin (Sn)

Max Operating Temperature
150°C

Min Operating Temperature
-65°C

Applications
EFFICIENCY

HTS Code
8541.10.00.80

Terminal Position
DUAL

Terminal Form
FLAT

Peak Reflow Temperature (Cel)
260

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
2

Reference Standard
AEC-Q101

Element Configuration
Single

Speed
Fast Recovery =< 500ns, > 200mA (Io)

Diode Type
Schottky

Current - Reverse Leakage @ Vr
100μA @ 40V

Voltage - Forward (Vf) (Max) @ If
490mV @ 2A

Forward Current
2A

Max Reverse Leakage Current
100μA

Operating Temperature - Junction
150°C Max

Max Surge Current
50A

Output Current-Max
2A

Forward Voltage
490mV

Max Reverse Voltage (DC)
40V

Average Rectified Current
2A

Number of Phases
1

Peak Reverse Current
100μA

Max Repetitive Reverse Voltage (Vrrm)
40V

Capacitance @ Vr, F
95pF @ 10V 1MHz

Peak Non-Repetitive Surge Current
50A

Reverse Voltage
40V

Max Forward Surge Current (Ifsm)
50A

Max Junction Temperature (Tj)
150°C

Download datasheets and manufacturer documentation for Nexperia PMEG4020ER,115.

PMEG4020ER,115 Overview

A reasonable reverse voltage is 40V.In this device, the maximum reverse leakage current is 100μA volts.The average rectified current for this device is 2A volts.When the forward current reaches 2A, it is allowed.The maximum surge current is 50A.As far as output current is concerned, 2A is the maximum.A data chart shows that the peak reverse is 100μA in the datasheets.

PMEG4020ER,115 Features

a maximal reverse leakage current of 100μA volts
an average rectified current of 2A volts
2A is the maximum value
the peak reverse is 100μA

PMEG4020ER,115 Applications

There are a lot of Nexperia USA Inc.
PMEG4020ER,115 applications of single-phase diode rectifier.

DC motor control and drives
Battery chargers
Welders
Power converters
Reverse Polarity Protection
Ultra High-Speed Switching
Freewheeling
Polarity Protection Diode
Recirculating Diode
Switching Diode
