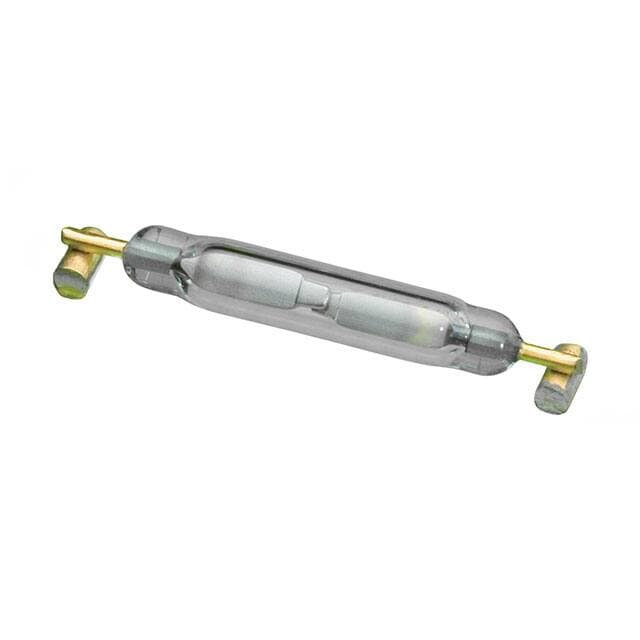

PMC-1001TS1520 Information
PIC GmbH PMC-1001TS1520 technical specifications, attributes, parameters and parts with similar specifications to PIC GmbH PMC-1001TS1520.
- Type
- Parameter
- Factory Lead Time
- 12 Weeks
- Mounting Type
- Surface Mount
- Operating Temperature
- -40°C~125°C
- Packaging
- Tape & Reel (TR)
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Type
- Glass Body
- Termination Style
- Axial
- Circuit
- SPST-NO
- Operate Time
- 0.5ms
- Type
- Parameter
- Release Time
- 0.3ms
- Power - Rated
- 10W
- Size - Body
- 0.394Lx0.079W x 0.091 H 10.00mmx2.00mmx2.30mm
- Current - Switching
- 700mA AC/DC
- Operate Range
- 15 ~ 20AT
- Current - Carry
- 1A AC/DC
- Voltage - Switching AC
- 130V
- Voltage - Switching DC
- 180V
- Release Range
- 4AT
- Length - Overall
- 0.512 13.00mm
PMC-1001TS1520 FAQ
Can I request a quote for PMC-1001TS1520?
PMC-1001TS1520 from PIC GmbH is ready for RFQ submission. Send your target quantity and requirements, and AIChipLink will check current availability, lead time, and quantity-based pricing.
Why is pricing not shown as a fixed value for PMC-1001TS1520?
The final price for PMC-1001TS1520 depends on requested quantity, supply conditions, date code, package option, and destination. An RFQ lets us return the current market quote for your order.
Which specifications should I review for PMC-1001TS1520?
PMC-1001TS1520 is a PIC GmbH Switches part. Key details include Packaging: Tape & Reel (TR) and Moisture Sensitivity Level (MSL): 1 (Unlimited) and Voltage - Switching AC: 130V; contact us if you need the specifications verified before sourcing.
When will I receive a quotation for PMC-1001TS1520?
After you submit the RFQ for PMC-1001TS1520, our sales team typically replies within 24 hours with availability, unit pricing, lead time, shipping choices, and possible substitutes.
What is the expected shipping time for PMC-1001TS1520?
Once stock for PMC-1001TS1520 is confirmed, available inventory can generally ship within 1–2 business days. The final schedule depends on quantity, warehouse source, and delivery address.
Can AIChipLink help find alternatives to PMC-1001TS1520?
Yes. If PMC-1001TS1520 is unavailable, end-of-life, or outside your schedule, we can review comparable PIC GmbH Switches parts and compatible replacement options.
