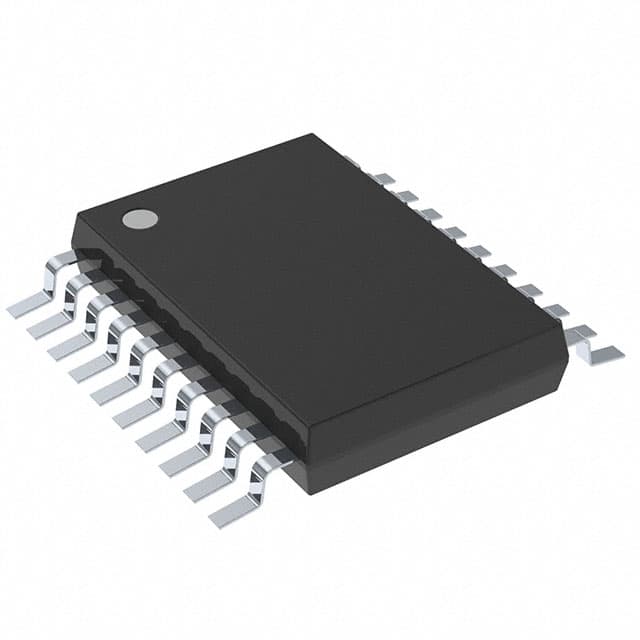

ST PM8803
ST PM8803

ST PM8803

Manufacturer No:

PM8803

Manufacturer:

ST

Package:

20-TSSOP (0.173, 4.40mm Width) Exposed Pad

Description:

Tray 20-TSSOP (0.173, 4.40mm Width) Exposed Pad Controller (PD), DC/DC 1 -40°C~85°C PM8803 20 DUAL 1

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PM8803 information

ST PM8803 technical specifications, attributes, parameters and parts with similar specifications to ST PM8803.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 7 months ago)
  • Factory Lead Time
  • 12 Weeks
  • Mount
  • Surface Mount
  • Package / Case
  • 20-TSSOP (0.173, 4.40mm Width) Exposed Pad
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Tray
  • JESD-609 Code
  • e4
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 20
  • ECCN Code
  • EAR99
  • Type
  • Controller (PD), DC/DC
  • Terminal Finish
  • Nickel/Palladium/Gold (Ni/Pd/Au)
  • Subcategory
  • Switching Regulator or Controllers
  • Terminal Position
  • DUAL
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • 260
  • Number of Functions
  • 1
  • Terminal Pitch
  • 0.65mm
  • Base Part Number
  • PM8803
  • Pin Count
  • 20
  • JESD-30 Code
  • R-PDSO-G20
  • Operating Supply Voltage
  • 3.6V
  • Input Voltage-Nom
  • 48V
  • Max Supply Current
  • 80mA
  • Power - Max
  • 25.5W
  • Input Voltage (Min)
  • 32.5V
  • Control Mode
  • CURRENT-MODE
  • Control Technique
  • PULSE WIDTH MODULATION
  • Switcher Configuration
  • SINGLE
  • Internal Switch(s)
  • Both
  • Max Duty Cycle
  • 80 %
  • Standards
  • 802.3at (PoE+), 802.3af (PoE)
  • Auxiliary Sense
  • No
  • Length
  • 6.5mm
  • Width
  • 4.4mm
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for ST PM8803.

Datasheets:

PM8803 Overview


The package Tray includes it as part of PoE controller.It is the way it is packaged that makes it 20-TSSOP (0.173, 4.40mm Width) Exposed Pad.In this application, it is an PoE controller that is of the Controller (PD), DC/DC type.Currently, there are a number of channels that are strong or weak: 1.For the sake of ensuring the reliability of the Po E controller, it functions at a temperature of -40°C~85°C.There is a possibility of determining its Po E controllers by referring to the base part number PM8803.A 20 termination involves terminating the transmission line with a power over ethernet controller of the same impedance as the line.As far as the maximum power of this electrical ethernet over power controller is concerned, it is 25.5W Watts.As you can see from the image, it is equipped with 20 pin count.A Po E controller like this is included in Switching Regulator or Controllers.During reflowing of the electrical ethernet power controller, the peak temperature (Cel) reaches 260 °C.This PoE ethernet controller is mounted in such a way that it faces Surface Mount.This PoE controller requires a supply voltage of 3.6V to function properly.In order for this power over ethernet devices to function properly, it requires a minimal input voltage of 32.5V.

PM8803 Features


Tray package
20 pin count


PM8803 Applications


There are a lot of STMicroelectronics
PM8803 Power Over Ethernet (PoE) Controllers applications.


  • IP Phone Power Management
  • Wireless Access Points
  • Security Cameras
  • Power over Ethernet
  • PoE powered device appliances
  • High power (>12.95 W) powered devices
  • IEEE 802.3bt (Draft) Compliant Devices
  • Lighting
  • Power Modules
  • Dual Signature PD/Forced UPOE
