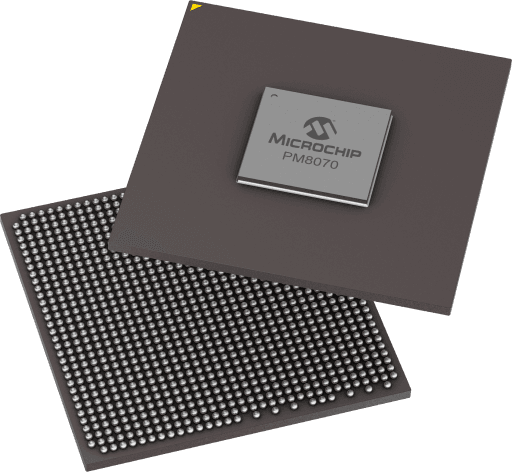

Microchip PM8070B1-F3EI

Manufacturer No:

PM8070B1-F3EI

Manufacturer:

Microchip

Package:

Radial

Description:

PM8070: 8x12G

Quantity:

Delivery:

Payment:

In Stock :108

Price not displayed? Please send an RFQ, and we will respond immediately.

PM8070B1-F3EI information

Microchip PM8070B1-F3EI technical specifications, attributes, parameters and parts with similar specifications to Microchip PM8070B1-F3EI.

Type
Parameter

Product Type
Tachyon

Port Count Supported Devices
8

Generation
12 Gbps

Interface
8-Lane PCIe Gen3

Physical Dimensions (Inch/mm)
27 mm x 27 mm

Controller Based Encryption (CBE)
No

Flexible Configuration
No

Download datasheets and manufacturer documentation for Microchip PM8070B1-F3EI.

Brochures:

a2d029c620349c5ed7842822fdc88412.pdf

The Tachyon® highly-integrated 12G SAS and 3G/6G/12G SATA protocol controller family is optimized for fabric-attached RAID storage system applications and SAS/SATA HBA applications, significantly increasing total system performance, diagnostics, scalability and manageability.

Tachyon controllers provide an efficient and scalable architecture that enables industry-leading system performance. They provide application-programming environments that are compatible with other members of the Tachyon SAS/SATA controllers and Fibre Channel controllers, enabling software leverage between controllers and protocols.

The controllers provide system designers with end-to-end diagnostics and error handling mechanisms to increase system performance, availability and most importantly, manageability. Unique end-to-end features and algorithms can be achieved from host to Hard Disk Drive (HDD) or Solid‑State Drive (SSD) by using these controllers in combination with market-leading SAS/SATA expanders, multiplexers and enclosure management solutions.

Wide target support enables high-performance, front-end SAS applications, or can be used for host-host failover coordination
End-to-end system diagnostics and error handling mechanisms from host to hard disk drive
Enables cost-effective secure data SAS/SATA encryption solution across both HDD and SSD devices
FIPS 140-2 Level 3-certifiable solution meets the most stringent data security requirements
Support for up to 4K SAS addresses
Support for up to 8K outstanding I/Os
Support for wide-port initiator and wide-port target modes
Encryption

IEEE 1619-compliant line rate AES-XTS for data at rest encryption
256-bit key size supported
FIPS 140-2, Levels 1–3 certifiable
Secure key encryption key (KEK) management
Support for 4M data encryption keys (DEKs) and eight KEKs
KMIP-compliant key blob support

SAS/SATA

SAS initiator, SAS target, or SATA HBA operation on a per-PHY basis
SSP, SMP, STP, and direct-attached SATA protocol support
A single SAS PHY supports up to 1.2 GB/s of bandwidth
Initiator and target mode configurable on a per-PHY basis
Hot-plug and SATA NCQ support
SAS 2.1 optical support PCI Express (PCIe)

PCI Express (PCIe)

Eight-lane native PCIe-compliant 2.5 Gbps (PCIe 1.1), 5 Gbps (PCIe 2.0), and 8 Gbps PHYs (PCIe 3.0)

Support for Statistics and Performance Monitoring

Enhanced SAS error monitoring and fault isolation
SAS topology monitoring and fault determination

High-Speed I/O

Independent per-channel, selectable high-speed outputs support multiple programmable levels of pre-emphasis and output swing
Independent per-channel, selectable high-speed inputs support multiple programmable levels of receive equalization
Integrated resistive termination
Automatic negotiation of link speed
Decision feedback equalizer provides robust recovery of 12 Gbps SAS signals over lossy channels

T10 DIF

Verification, insertion, and replacement of T10 data integrity fields (DIF) as defined by SBC-2

Test and Control

Power and reset control

Configurable Peripheral Interfaces

Interfaces for NOR flash memory and SEEPROM
Four two-wire interfaces (TWIs) support variable rates up to 400 kHz
Two industry-standard 16750 UARTs
Four SFF-8485-compliant serial GPIO (SGPIO) ports
16 customer-configurable GPIO pins
