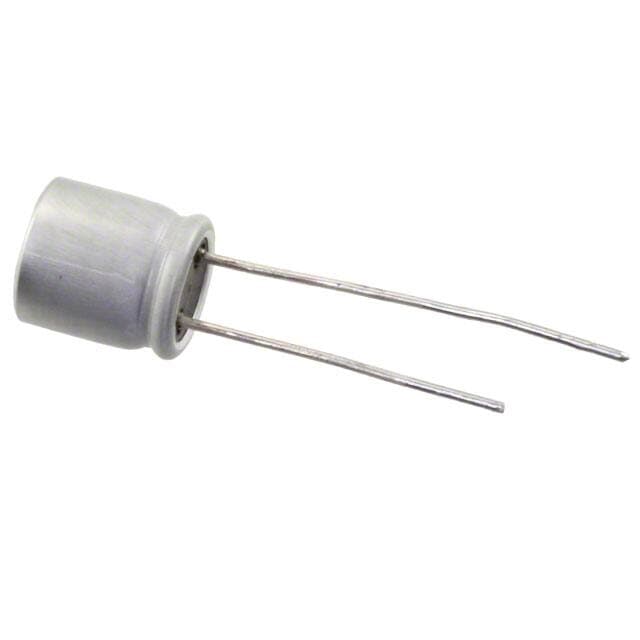

NICHICON PLS0G561MCO6
Manufacturer No:
PLS0G561MCO6
Manufacturer:
Package:
Radial, Can
Description:
560?F ±20% Radial, Can 0.354 9.00mm Bulk 7mOhm PLS Through Hole Polymer General Purpose
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
PLS0G561MCO6 information
NICHICON PLS0G561MCO6 technical specifications, attributes, parameters and parts with similar specifications to NICHICON PLS0G561MCO6.
- Type
- Parameter
- Factory Lead Time
- 17 Weeks
- Mount
- Through Hole
- Mounting Type
- Through Hole
- Package / Case
- Radial, Can
- Terminal Shape
- WIRE
- Operating Temperature
- -55°C~105°C
- Packaging
- Bulk
- Series
- PLS
- Published
- 2009
- Size / Dimension
- 0.315Dia 8.00mm
- Tolerance
- ±20%
- JESD-609 Code
- e4
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 2
- Termination
- Radial
- ECCN Code
- EAR99
- Type
- Polymer
- Terminal Finish
- Silver (Ag)
- Applications
- General Purpose
- HTS Code
- 8532.22.00
- Capacitance
- 560?F
- Voltage - Rated DC
- 4V
- ESR (Equivalent Series Resistance)
- 7mOhm
- Polarity
- Polar
- Lead Spacing
- 0.138 3.50mm
- Lead Diameter
- 600 ?m
- Voltage
- 4V
- Lifetime @ Temp
- 5000 Hrs @ 105°C
- Leakage Current
- 448?A
- Ripple Current
- 5.2A
- Life (Hours)
- 5000 hours
- Tan Delta
- 0.08
- Ripple Current @ High Frequency
- 5.2A @ 100kHz
- Diameter
- 8mm
- Height
- 9mm
- Height Seated (Max)
- 0.354 9.00mm
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for NICHICON PLS0G561MCO6.
Datasheets:
PLS0G561MCO6 Overview
Systems need 5.2A @ 100kHz ripple current at high frequency to be powered.In this electrical device, the ESR (Equivalent Series Resistance) is 7mOhm.An operating temperature of -55°C~105°C is recommended for stable operation.
PLS0G561MCO6 Features
5.2A @ 100kHz ripple current on a high frequency
a 7mOhm in ESR (Equivalent Series Resistance) in this electrical device
an operating temperature of -55°C~105°C
PLS0G561MCO6 Applications
There are a lot of Nichicon
PLS0G561MCO6 applications of aluminum polymer capacitors.
- LED driver power supplies
- Phone chargers
- Motherboards
- Servers and adapters (laptop power supplies)
- Medical equipment
- Switching Power Supply and DC/DC Converter.
- Buck up Power Supplies of CPU(VRM etc.)
- Miniature high Power Supply.
