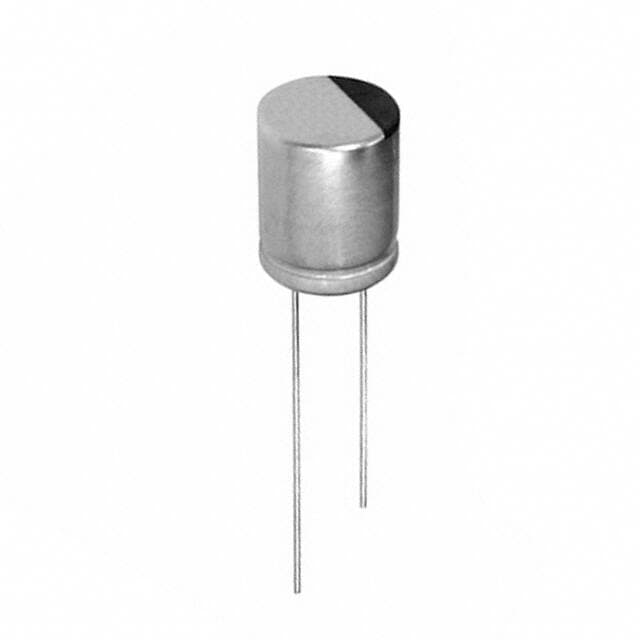

NICHICON PLF0E561MC01

Manufacturer No:

PLF0E561MC01

Manufacturer:

NICHICON

Package:

Radial, Can

Description:

560?F ±20% Radial, Can 0.374 9.50mm Bulk 6mOhm PLF Through Hole Polymer General Purpose

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PLF0E561MC01 information

NICHICON PLF0E561MC01 technical specifications, attributes, parameters and parts with similar specifications to NICHICON PLF0E561MC01.

Type
Parameter

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Operating Temperature
-55°C~105°C

Packaging
Bulk

Series
PLF

Published
2012

Size / Dimension
0.315Dia 8.00mm

Tolerance
±20%

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Radial

Type
Polymer

Max Operating Temperature
105°C

Min Operating Temperature
-55°C

Applications
General Purpose

Voltage - Rated
2.5V

Capacitance
560?F

Voltage - Rated DC
2.5V

Lead Pitch
3.5052mm

ESR (Equivalent Series Resistance)
6mOhm

Lead Spacing
0.138 3.50mm

Lifetime @ Temp
2000 Hrs @ 105°C

Ripple Current
4.8A

Height Seated (Max)
0.374 9.50mm

Length
9mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NICHICON PLF0E561MC01.

Datasheets:

nichicon-plf0e561mc01-datasheets-2715.pdf

PLF0E561MC01 Overview

There is an ESR (Equivalent Series Resistance) of 6mOhm on this electrical device.Ideally, the operating temperature should be -55°C~105°C.

PLF0E561MC01 Features

a 6mOhm in ESR (Equivalent Series Resistance) in this electrical device
an operating temperature of -55°C~105°C

PLF0E561MC01 Applications

There are a lot of Nichicon
PLF0E561MC01 applications of aluminum polymer capacitors.

LED driver power supplies
Phone chargers
Motherboards
Servers and adapters (laptop power supplies)
Medical equipment
Switching Power Supply and DC/DC Converter.
Buck up Power Supplies of CPU(VRM etc.)
Miniature high Power Supply.
