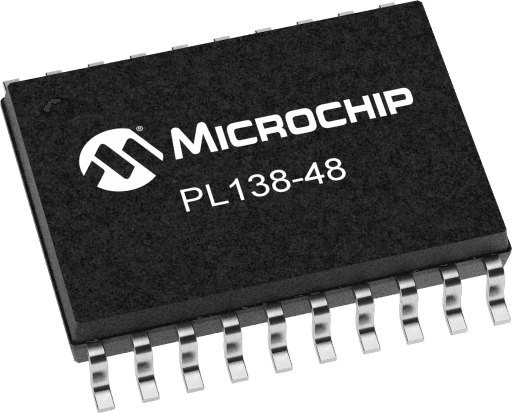

Microchip PL138-48OI

Manufacturer No:

PL138-48OI

Manufacturer:

Microchip

Package:

20-TSSOP (0.173, 4.40mm Width)

Description:

Low Skew 1:4 LVPECL Fanout Buffer

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PL138-48OI information

Microchip PL138-48OI technical specifications, attributes, parameters and parts with similar specifications to Microchip PL138-48OI.

Type
Parameter

Description
2:4 PECL buffer 50fs Typ, 100fs Max Additive Phase Jitter

Input
LVDS/LVPECL/LVHSTL/SSTL/HCSL/LVCMOS

Output
LVPECL

Supply Voltage
2.5/3.3

Max Freq (GHz)
1

Icc (mA)
145

Max Within Device Skew (ps)
37

OE
True

Input Mux
True

Number Of Outputs
0

Buffer Type
Fanout

Fanout
1:4

Max Prop Delay (ps)
890

Download datasheets and manufacturer documentation for Microchip PL138-48OI.

Data Sheets:

81b50279f7fa7bf3af6542e5631cd4c0.pdf

The PL138-48 family is a high performance low-cost 1:4 outputs Differential LVPECL fanout buffer.The family of Differential LVPECL buffers are designed to operate from a single power supply of 2.5V±5% or 3.3V±10%. The differential input pairs are designed to accept most standard input signal levels, using an appropriate resistor bias network, and produce a high quality set of outputs with the lowest possible skew on the outputs, which is guaranteed for part-to-part or lot-to lot skew.Designed to fit in a small form-factor package, PL138 family offers up to 1GHz of output operation with very low-power consumption, and lowest additive jitter of any comparable device. The Output Enable feature, when activated, allows the IC to consume less than 10µA of current.

Four differential 2.5V/3.3V LVPECL output pairs
Output Frequency: =1GHz
Two selectable differential input pairs
LVPECL, LVCMOS, LVDS, HCSL, SSTL, LVHSTL, CML
Output Skew: 25ps (typ.)
Part-to-part skew: 140ps (typ.)
Propagation delay: 1.5ns (typ.)
Additive Jitter: <100fs (typ.)
Operating Supply Voltage: 2.375V ~ 3.63V
Operating temperature range from -40°C to 85°C
Package availability: 20-pin TSSOP
