Intel PL-USB2-BLASTER

Manufacturer No:

PL-USB2-BLASTER

Manufacturer:

Intel

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PL-USB2-BLASTER information

Intel PL-USB2-BLASTER technical specifications, attributes, parameters and parts with similar specifications to Intel PL-USB2-BLASTER.

Type
Parameter

Packaging
Bulk

Series
Intel® FPGA Download Cable II

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Type
Programmer (In-Circuit/In-System)

Contents
Board(s)

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Intel PL-USB2-BLASTER.

Datasheets:

intel-plusb2blaster-datasheets-3782.pdf

PCN Packaging:

intel-dcf0484wn1n-pcnpackaging-9266.pdf

PL-USB2-BLASTER Description

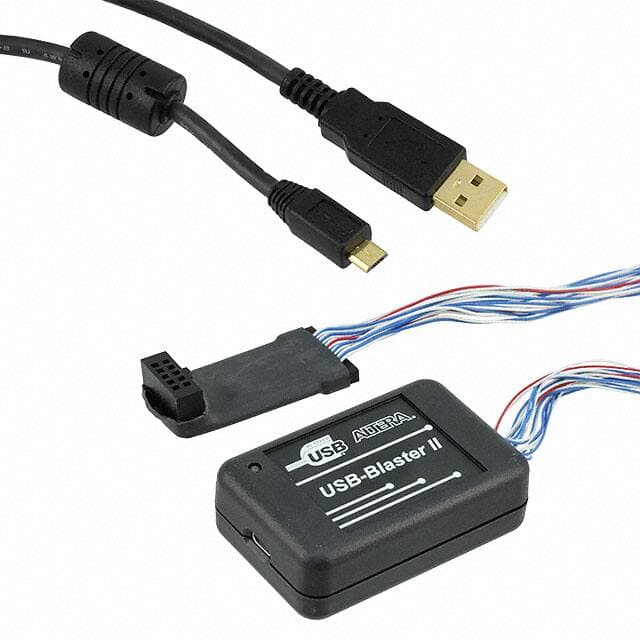

The PL-USB2-BLASTER is a USB-Blaster download cable. This cable interfaces a USB port on a host computer to FPGA mounted on a printed circuit board. The Intel® FPGA Download Cable connects an FPGA placed on a printed circuit board to a USB port on a host computer. The connection transmits configuration information from the host computer to an FPGA's standard 10-pin interface. The Intel FPGA Download Cable can be used to program data into a system during production or to iteratively download configuration data to a system during prototyping.

PL-USB2-BLASTER Features

It can perform ISP of EPC2, EPC4, EPC8, EPC16, EPCS1, EPCS4, EPCS16, EPCS64 and EPCS128 devices
Perform SignalTap II logic analysis
Supports the joint test action group (JTAG), passive serial programming and active serial modes
Requires 5.0V from the USB cable and between 1.5V and 5.0V from the target circuit board

PL-USB2-BLASTER Applications

Communications & Networking
Embedded Design & Development
