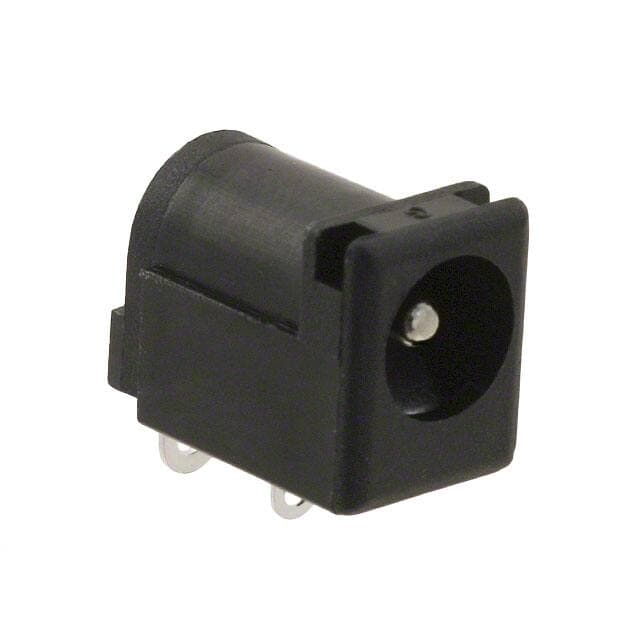

CUI Devices PJ-037AH
CUI Devices PJ-037AH

CUI Devices PJ-037AH

Manufacturer No:

PJ-037AH

Manufacturer:

CUI Devices

Package:

Description:

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PJ-037AH information

CUI Devices PJ-037AH technical specifications, attributes, parameters and parts with similar specifications to CUI Devices PJ-037AH.

  • Type
  • Parameter
  • Factory Lead Time
  • 11 Weeks
  • Contact Material
  • Brass, Copper Alloy
  • Contact Plating
  • Nickel
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole, Right Angle
  • Housing Material
  • Polybutylene Terephthalate (PBT)
  • Contact Material - Plating
  • Silver
  • Operating Temperature
  • -25°C~85°C
  • Packaging
  • Bulk
  • Published
  • 2011
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder Eyelet(s)
  • Connector Type
  • Jack
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • -25°C
  • Color
  • Black
  • Gender
  • Male
  • Voltage - Rated
  • 24VDC
  • Current Rating (Amps)
  • 5A
  • Orientation
  • Horizontal
  • Shielding
  • Unshielded
  • Current Rating
  • 5A
  • Number of Conductors
  • 2
  • Housing Color
  • Black
  • Insulation Resistance
  • 100MOhm
  • Number of Positions/Contacts
  • 2 Conductors, 2 Contacts
  • Internal Switch(s)
  • Does Not Contain Switch
  • Body Color
  • Black
  • Industry Recognized Mating Diameter
  • 2.10mm ID (0.083), 5.50mm OD (0.217)
  • Actual Diameter
  • 0.079 (2.00mm ID), 0.256 (6.50mm OD)
  • Mating Length/Depth
  • 0.354 9.00mm
  • Material Flammability Rating
  • UL94 V-0
  • RoHS Status
  • RoHS Compliant
  • Flammability Rating
  • UL94 V-0
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for CUI Devices PJ-037AH.

Description:

The CUI Devices PJ-037AH is a power connector with a 2x5.5mm solder connection. It is a barrel-style connector with a 2.1mm center pin and a 5.5mm outer diameter. It is designed for use in a variety of applications, including power supplies, AC adapters, and other power-related applications.

Features:

? 2x5.5mm solder connection
? Barrel-style connector
? 2.1mm center pin
? 5.5mm outer diameter
? RoHS compliant
? UL recognized

Applications:

The CUI Devices PJ-037AH is suitable for use in a variety of applications, including power supplies, AC adapters, and other power-related applications. It is also suitable for use in consumer electronics, automotive, and industrial applications.
