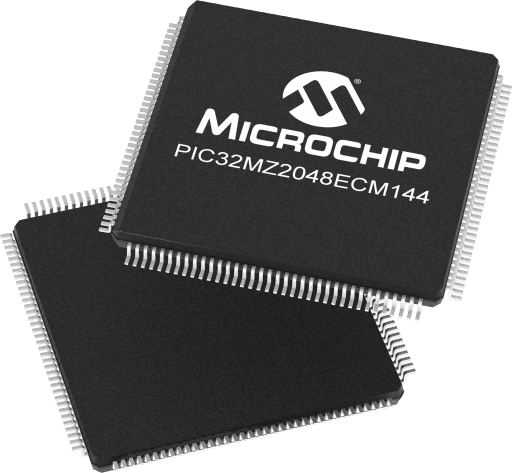

Microchip PIC32MZ2048ECM144-I/PH
Manufacturer No:
PIC32MZ2048ECM144-I/PH
Manufacturer:
Package:
144-TQFP
Description:
32 Bit MCU, 2MB Flash, 512KB SRAM, 200 MHz, 144 Pin, USB, Crypto, Ethernet, EBI, SQI, RTCC,
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
PIC32MZ2048ECM144-I/PH information
Microchip PIC32MZ2048ECM144-I/PH technical specifications, attributes, parameters and parts with similar specifications to Microchip PIC32MZ2048ECM144-I/PH.
- Type
- Parameter
- Part Family
- PIC32MZEC
- CPU Type
- 32-bit MIPS MCU
- MaxSpeed (MHz)
- 200
- Program Memory Size (KB)
- 2048
- SRAM (KB)
- 512
- Temp. Range Min.
- -40
- Temp. Range Max.
- 85
- Operation Voltage Min.(V)
- 2.2
- Operation Voltage Max.(V)
- 3.6
- SPI
- 6
- I2C
- 5
- UART
- 6
- QSPI
- 1
- Crypto Engine
- Yes
- Internal Oscillator
- 8 MHz, 32 kHz
- Pin Count
- 144
Download datasheets and manufacturer documentation for Microchip PIC32MZ2048ECM144-I/PH.
Programming Specifications:
Legacy Collaterals:
Tech Brief:
Reference Manual:
Data Sheets:
Application Notes:
Please consider PIC32MZ2048EFM144 for new designs
- 200 MHz/330 DMIPS, microAptiv core
- DSP-enhanced core:
- Four 64-bit accumulators
- Single-cycle MAC, saturating and fractional math
- Dual Panel Flash for live update support
- 10-bit, 500 KSPS, 48-channel ADC module
- Memory Management Unit for optimum embedded OS execution
- microMIPS mode for up to 35% code compression
- CAN, UART, I2C, PMP, EBI, SQI & Analog Comparators
- SPI/I2S interfaces for audio processing and playback
- Hi-Speed USB 2.0 Device/Host/OTG
- 10/100 Mbps Ethernet MAC with MII and RMII interface
- Crypto Engine with a RNG for data encryption/decryption and authentication (AES, 3DES, SHA, MD5, and HMAC)
- Temperature Range:
- 40°C to 85°C;
- 40°C to 125°C (planned)
- Operating voltage range of 2.2V to 3.6V
- Please consider PIC32MZ2048EFM144 for new designs
- 2MB Flash memory (plus an additional 160 KB of Boot Flash)
- 512KB SRAM memory
- microMIPS mode for up to 35% smaller code size
- DSP-enhanced core:
- Four 64-bit accumulators
- Single-cylce MAC, saturating and fractional math
- Code-efficient (C and Assembly) architecture
- Low-power management modes (Idle and Sleep)
- 50 MHz External Bus Interface (EBI)
- 50 MHz Serial Quad Interface (SQI)
- Peripheral Pin Select (PPS) functionality to enable function remap
- 8 channels of hardware programmable DMA and 18 channels of dedicated DMA with automatic data size detection
- Six UART modules (25 Mbps): Supports LIN 1.2 and IrDA protocols
- Two CAN modules 2.0B Active with DeviceNet addressing support
- Six 4-wire SPI modules (50 Mbps)
- SQI configurable as an additional SPI module (50 MHz)
- Five I2C modules (up to 1 Mbaud) with SMBus support
- Parallel Master Port (PMP)
- Hardware Real-Time Clock and Calendar (RTCC)
- Nine 16-bit Timers/Counters (four 16-bit pairs combine to create four 32-bit timers)
- Nine Capture inputs and Nine Compare/PWM outputs
- Graphics interface: EBI or PMP
- Audio data communication: I2S, LJ, RJ, USB
- Audio data control interface: SPI and I2C™
- Audio data master clock: Fractional clock frequencies with USB synchronization
- 10-bit ADC Module:
- 500 Ksps rate with one Sample and Hold (S&H) circuits
- Up to 48 analog inputs
- Flexible and independent ADC trigger sources
- 6 digital filters and comparators
- Two analog comparators with 32 programmable voltage references
- Temperature sensor with ±2°C accuracy
- In-circuit and in-application programming
- 4-wire MIPS® Enhanced JTAG interface
- Unlimited program and 12 complex data breakpoints
- IEEE 1149.2-compatible (JTAG) boundary scan
- Non-intrusive hardware-based instruction trace
