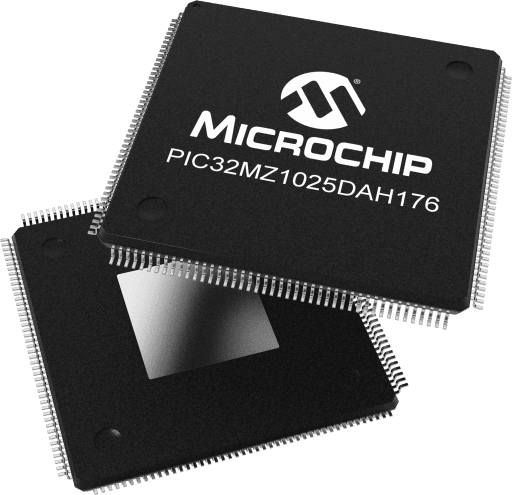

Microchip PIC32MZ1025DAH176-I/2J
Manufacturer No:
PIC32MZ1025DAH176-I/2J
Manufacturer:
Microchip
Package:
176-LQFP Exposed Pad
Description:
32 Bit MCU, 1MB Flash, 256KB SRAM, 200 MHz, 176 Pin, Graphics, Crypto, USB, Ethernet, DRAM
Quantity:
In Stock :9193
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Shipped from：HK Warehouse
Expected Shipping：Tue, Jun 30 - Wed, Jul 1, 2026
Lead Time：Inquire about availability
Date Code：Within 2 Years
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Available from AS9120 Certified Supplier, AIChipLink delivers high-reliability electronic components supported by certified quality management, rigorous inspection processes, counterfeit mitigation controls, and full traceability systems. Our operations comply with AS9120, ISO 9001:2015, and IECQ ESD standards to support aerospace, industrial, defense, and mission-critical applications.
PURCHASE
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
SHIPPING COST
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
PIC32MZ1025DAH176-I/2J Information
Microchip PIC32MZ1025DAH176-I/2J technical specifications, attributes, parameters and parts with similar specifications to Microchip PIC32MZ1025DAH176-I/2J.
- Type
- Parameter
- Part Family
- PIC32MZDA
- CPU Type
- 32-bit MIPS MCU
- MaxSpeed (MHz)
- 200
- Program Memory Size (KB)
- 1024
- SRAM (KB)
- 256
- Temp. Range Min.
- -40
- Temp. Range Max.
- 85
- Operation Voltage Min.(V)
- 2.2
- Operation Voltage Max.(V)
- 3.6
- SPI
- 6
- Type
- Parameter
- I2C
- 5
- UART
- 6
- QSPI
- 1
- Crypto Engine
- Yes
- Internal Oscillator
- 8 MHz, 32 KHz
- Pin Count
- 176
- Secure Boot
- No
Download datasheets and manufacturer documentation for Microchip PIC32MZ1025DAH176-I/2J.
Brochures:
Application Notes:
Tech Brief:
Reference Manual:
Data Sheets:
Legacy Collaterals:
PIC32MZ DA series offers MPU like performance with ease of design of an MCU for GUI designs with it’s 2MB Flash and 640KB of SRAM, available on-chip 32MB or 128MB externally addressable DDR2 DRAM, integrated Graphics Controller, Graphics Processor, 200 MHz speed, 12-bit 18 MSPS ADC module with up to 45 analog inputs, CAN and HS USB.
- 200 MHz/330 DMIPS, MIPS32 microAptiv core
- Dual Panel Flash for live update support
- 12-bit, 18 MSPS, 45-channel ADC module
- Memory Management Unit for optimum embedded OS execution
- microMIPS mode for up to 35% code compression
- CAN, UART, I2C, PMP, EBI, SQI & Analog Comparators
- SPI/I2S interfaces for audio processing and playback
- Hi-Speed USB Device/Host/OTG
- 10/100 Mbps Ethernet MAC with MII and RMII interface
- Crypto Engine with a RNG for data encryption/decryption and authentication (AES, 3DES, SHA, MD5, and HMAC)
- Peripheral and memory region access control
- Temperature Range - 40°C to 85°C, - 40°C to 105°C (planned)
- Operating voltage range of 2.3V to 3.6V
- 1MB Flash memory (plus an additional 160 KB of Boot Flash)
- 256KB SRAM memory
- microMIPS mode for up to 35% smaller code size
- Four 64-bit accumulators
- Single-cylce MAC, saturating and fractional math
- IEEE 754-compliant
- Code-efficient (C and Assembly) architecture
- Various power management options for extreme power reduction (VBAT, Deep Sleep, Sleep and Idle)
- Deep Sleep current: < 1µA (typical)
- Integrated POR and BOR
- Programmable High/Low-Voltage Detect (HLVD) on VDDIO and High-Voltage Detect (HVD) on VDDR1V8
- Programmable PLLs and oscillator clock sources
- Dedicated PLL for DDR2
- Fail-Safe Clock Monitor
- Independent Watchdog and Deadman Timers
- Fast wake-up and start-up
- Internal DDR2 SDRAM interface (up to DDR2-400) with onboard 32MB SDRAM
- 50 MHz SD/SDIO/eMMC bus interface
- 50 MHz External Bus Interface (EBI)
- 80 MHz Serial Quad Interface (SQI)
- Peripheral Pin Select (PPS) functionality to enable function remap
- Up to 8 channels of hardware DMA with automatic data size detection
- Six UART modules (25 Mbps): Supports LIN 1.2 and IrDA protocols
- Two CAN modules 2.0B Active with DeviceNet addressing support
- Six 4-wire SPI modules (80 Mbps)
- SQI configurable as an additional SPI module (50 MHz)
- Five I2C modules (up to 1 Mbaud) with SMBus support
- Parallel Master Port (PMP)
- Hardware Real-Time Clock and Calendar (RTCC) module
- Nine 16-bit Timers/Counters (four 16-bit pairs combine to create four 32-bit timers)
- Nine Input Capture (IC) and Nine Output Compare(OC)/PWM outputs
- 3-layer Graphics Controller with up to 24-bit color support
- High-performance 2D Graphics Processing Unit (GPU)
- Audio data communication: I2S, LJ, RJ, USB
- Audio data control interface: SPI and I2C™
- Audio data master clock: Fractional clock frequencies with USB synchronization
- 12-bit ADC Module:
- 18Msps rate with six Sample and Hold (S&H) circuits (five dedicated and one shared)
- Up to 45 analog inputs
- Can operate during sleep and idle modes
- Multiple trigger sources
- Six digital comparators and six digital filters
- Two comparators with 32 programmable voltage references
- Temperature sensor with ±2°C accuracy
- Charge Time Measurement Unit (CTMU)
- AEC-Q100 REVG (Grade 2 -40oC to +105oC) (Planned)
- Class B Safety Library, IEC 60730
- Back-up internal oscillator
- In-circuit and in-application programming
- 4-wire MIPS® Enhanced JTAG interface
- Unlimited program and 12 complex data breakpoints
- IEEE 1149.2-compatible (JTAG) boundary scan
- Non-intrusive hardware-based instruction trace
- MPLAB Harmony – PIC32 software development framework
- C/C++ compiler with native DSP/fractional and FPU support
- TCP/IP, USB, Graphics, and mTouch middleware
- MFi, Android, and Bluetooth audio frameworks
- RTOS Kernels, Express Logic ThreadX FreeRTOS, OPENRTOS, Micriµm, µC/OS and SEGGER embOS
