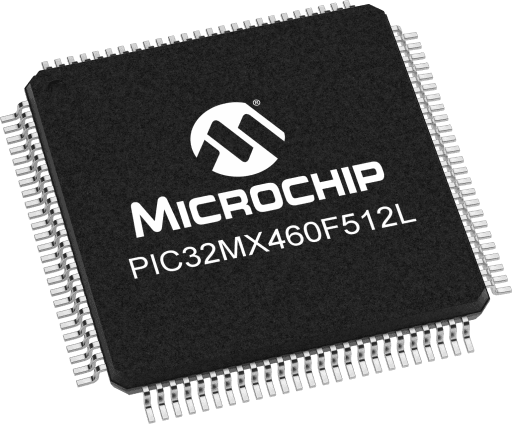

Microchip PIC32MX460F512L-80V/PT

Manufacturer No:

PIC32MX460F512L-80V/PT

Manufacturer:

Microchip

Package:

100-TQFP

Description:

32 Bit MCU, 512KB Flash, 32KB RAM, 80 MHz, 100 Pin, USB

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PIC32MX460F512L-80V/PT information

Microchip PIC32MX460F512L-80V/PT technical specifications, attributes, parameters and parts with similar specifications to Microchip PIC32MX460F512L-80V/PT.

Type
Parameter

Part Family
PIC32MX4xx

CPU Type
32-bit MIPS MCU

MaxSpeed (MHz)
80

Program Memory Size (KB)
512

SRAM (KB)
32

Temp. Range Min.
-40

Temp. Range Max.
105

Operation Voltage Min.(V)
2.3

Operation Voltage Max.(V)
3.6

UART
2

QSPI
0

Crypto Engine
No

Internal Oscillator
8 MHz, 32 kHz

Pin Count
100

Download datasheets and manufacturer documentation for Microchip PIC32MX460F512L-80V/PT.

80MHz/105DMIPS, 32-bit MIPS M4K Core
USB 2.0 On-The-Go Peripheral with integrated PHY
Dedicated DMA Channel for USB OTG
5 Stage pipeline, Harvard architecture
MIPS16e mode for up to 40% smaller code size
Single cycle multiply and hardware divide unit
32 x 32-bit Core Registers
32 x 32-bit Shadow Registers
Fast context switch and interrupt response
512K Flash (plus 12K boot Flash)
32K RAM (can execute from RAM)
4 Channel Hardware DMA Controller
Flash prefetch module with 256 Byte cache
Lock instructions or data in cache for fast access
Programmable vector interrupt controller
Fast and Accurate 16 channel 10-bit ADC,
Max 1 Mega samples per second at +/- 1LSB, conversion available during SLEEP & IDLE
RUN, IDLE, and SLEEP modes
Multiple switchable clock modes for each power mode, enables optimum power settings
8 hardware breakpoints (6 Instruction and 2 Data)
2 wire programming and debugging interface
JTAG interface supporting Programming, Debugging and Boundary scan
iFlow Trace: Non-intrusive Hardware Instruction Trace port (5 Wires)
Fail-Safe Clock Monitor – allows safe shutdown if clock fails
Hardware RTCC (Real-Time Clock and Calendar with Alarms)
2 Internal oscillators (8MHz & 31KHz)
Watchdog Timer with separate RC oscillator
Pin compatible with 16-bit PIC® MCUs

User Guide
