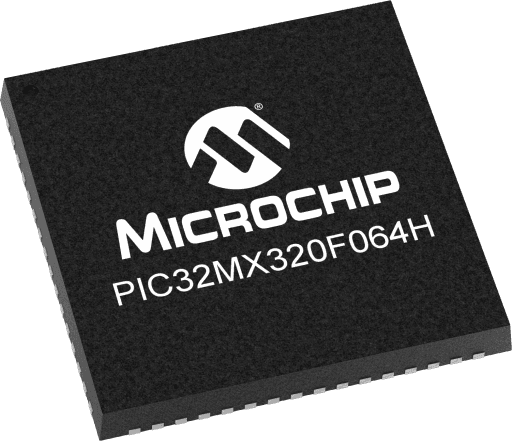

Microchip PIC32MX320F064H-80I/PT

Manufacturer No:

PIC32MX320F064H-80I/PT

Manufacturer:

Microchip

Package:

64-TQFP

Description:

32 Bit MCU, 64KB Flash, 16KB RAM, 80 MHz, 64 Pin

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PIC32MX320F064H-80I/PT information

Microchip PIC32MX320F064H-80I/PT technical specifications, attributes, parameters and parts with similar specifications to Microchip PIC32MX320F064H-80I/PT.

Type
Parameter

Part Family
PIC32MX3xx

CPU Type
32-bit MIPS MCU

MaxSpeed (MHz)
80

Program Memory Size (KB)
64

SRAM (KB)
16

Temp. Range Min.
-40

Temp. Range Max.
105

Operation Voltage Min.(V)
2.3

Operation Voltage Max.(V)
3.6

UART
2

QSPI
0

Crypto Engine
No

Internal Oscillator
8 MHz, 32 kHz

Pin Count
64

Download datasheets and manufacturer documentation for Microchip PIC32MX320F064H-80I/PT.

80MHz/105DMIPS, 32-bit MIPS M4K Core
5 Stage pipeline, Harvard architecture
MIPS16e mode for up to 40% smaller code size
Single cycle multiply and hardware divide unit
32 x 32-bit Core Registers
32 x 32-bit Shadow Registers
Fast context switch and interrupt response
62K Flash (plus 12K boot Flash)
16K RAM (can execute from RAM)
Flash prefetch module with 256 Byte cache
Lock instructions or data in cache for fast access
Programmable vector interrupt controller
Fast and Accurate 16 channel 10-bit ADC,
Max 1 Mega samples per second at +/- 1LSB, conversion available during SLEEP & IDLE
RUN, IDLE, and SLEEP modes
Multiple switchable clock modes for each power mode, enables optimum power settings
8 hardware breakpoints (6 Instruction and 2 Data)
2 wire programming and debugging interface
JTAG interface supporting Programming, Debugging and Boundary scan
Fail-Safe Clock Monitor – allows safe shutdown if clock fails
Hardware RTCC (Real-Time Clock and Calendar with Alarms)
2 Internal oscillators (8MHz & 31KHz)
Watchdog Timer with separate RC oscillator
Pin compatible with 16-bit PIC® MCUs

User Guide
